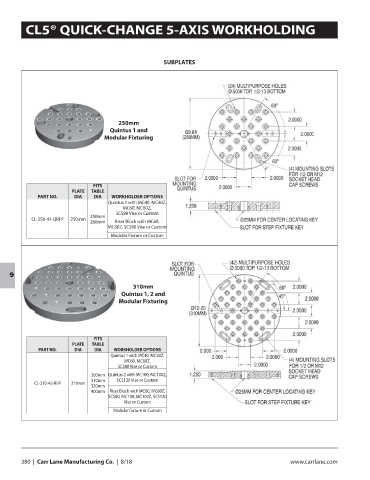

Page 382 - CarrLaneCatalog_2019ed-c.pdf
P. 382
CL5® QUICK-CHANGE 5-AXIS WORKHOLDING
SUBPLATES
250mm
Quintus 1 and
Modular Fixturing
FITS
PLATE TABLE
PART NO. DIA DIA WORKHOLDER OPTIONS
Quintus 1 with MC40, MC40Z,
MC60, MC60Z,
SCS80 Vise or Custom
250mm
CL-250-41-QRFP 250mm
260mm Riser Block with MC60,
MC60Z, SCS80 Vise or Custom
Modular Fixture or Custom
9
310mm
Quintus 1, 2 and
Modular Fixturing
FITS
PLATE TABLE
PART NO. DIA DIA WORKHOLDER OPTIONS
Quintus 1 with MC40, MC40Z,
MC60, MC60Z,
SCS80 Vise or Custom
300mm Quintus 2 with MC100, MC100Z,
310mm SCS120 Vise or Custom
CL-310-42-RFP 310mm
320mm
400mm Riser Block with MC60, MC60Z,
SCS80, MC100, MC100Z, SCS120
Vise or Custom
Modular Fixture or Custom
