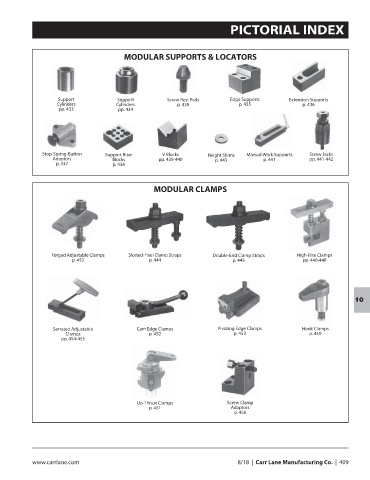

PICTORIAL INDEX
MODULAR SUPPORTS & LOCATORS
Support Support Screw Rest Pads Edge Supports Extension Supports
Cylinders Cylinders p. 439 p. 435 p. 436
pp. 433 pp. 434
Stop-Spring-Button Support Riser V Blocks Height Shims Manual Work Supports Screw Jacks
Adaptors Blocks pp. 439-440 p. 443 p. 441 pp. 441-442
p. 437 p. 438
MODULAR CLAMPS
Forged Adjustable Clamps Slotted-Heel Clamp Straps Double-End Clamp Straps High-Rise Clamps
p. 452 p. 444 p. 445 pp. 446-448
10
Serrated Adjustable Cam Edge Clamps Pivoting Edge Clamps Hook Clamps
Clamps p. 452 p. 453 p. 450
pp. 454-455
Up-Thrust Clamps Screw Clamp
p. 451 Adaptors
p. 456
www.carrlane.com 8/18 | Carr Lane Manufacturing Co. | 409
