TECHNICAL INFORMATION

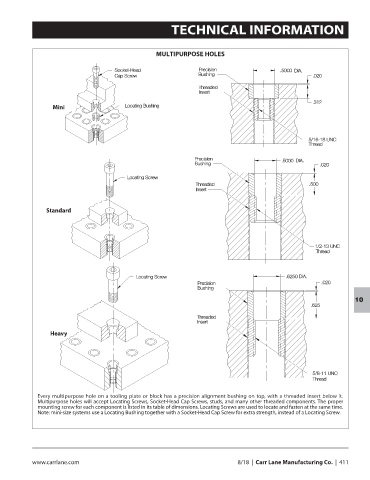

                                                     MULTIPURPOSE HOLES









                  Mini



















                Standard

















                                                                                                                      10




                  Heavy











             Every multipurpose hole on a tooling plate or block has a precision alignment bushing on top, with a threaded insert below it.
             Multipurpose holes will accept Locating Screws, Socket-Head Cap Screws, studs, and many other threaded components. The proper
             mounting screw for each component is listed in its table of dimensions. Locating Screws are used to locate and fasten at the same time.
             Note: mini-size systems use a Locating Bushing together with a Socket-Head Cap Screw for extra strength, instead of a Locating Screw.
