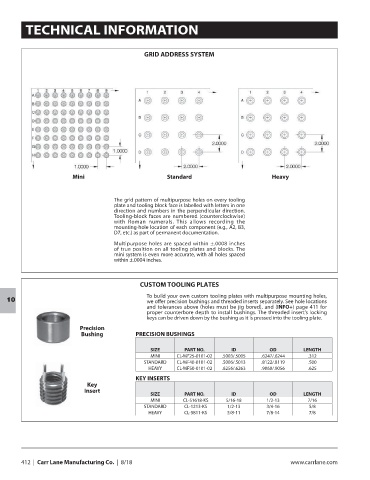

TECHNICAL INFORMATION

GRID ADDRESS SYSTEM

Mini Standard Heavy

The grid pattern of multipurpose holes on every tooling
plate and tooling block face is labelled with letters in one
direction and numbers in the perpendicular direction.
Tooling-block faces are numbered (counterclockwise)
with Roman numerals. This allows recording the
mounting-hole location of each component (e.g., A2, B3,
D7, etc.) as part of permanent documentation.

Multipurpose holes are spaced within ±.0008 inches
of true position on all tooling plates and blocks. The
mini system is even more accurate, with all holes spaced
within ±.0004 inches.

CUSTOM TOOLING PLATES
To build your own custom tooling plates with multipurpose mounting holes,
we offer precision bushings and threaded inserts separately. See hole locations
10
and tolerances above (holes must be jig bored), and (INFO+) page 411 for
proper counterbore depth to install bushings. The threaded insert’s locking
keys can be driven down by the bushing as it is pressed into the tooling plate.
Precision
Bushing PRECISION BUSHINGS

SIZE PART NO. ID OD LENGTH
MINI CL-MF25-0101-02 .5003/.5005 .6247/.6244 .312
STANDARD CL-MF40-0101-02 .5006/.5013 .8122/.8119 .500
HEAVY CL-MF50-0101-02 .6256/.6263 .9060/.9056 .625
KEY INSERTS
Key
Insert
SIZE PART NO. ID OD LENGTH
MINI CL-51618-KS 5/16-18 1/2-13 7/16
STANDARD CL-1213-KS 1/2-13 3/4-16 5/8
HEAVY CL-5811-KS 5/8-11 7/8-14 7/8
