TOOLROOM STARTER SETS

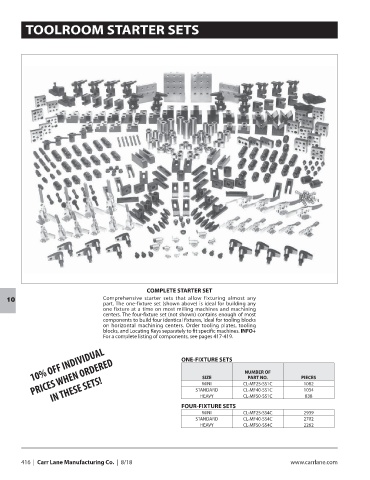

COMPLETE STARTER SET
Comprehensive starter sets that allow fixturing almost any
part. The one-fixture set (shown above) is ideal for building any
10
one fixture at a time on most milling machines and machining
centers. The four-fixture set (not shown) contains enough of most
components to build four identical fixtures, ideal for tooling blocks
on horizontal machining centers. Order tooling plates, tooling
blocks, and Locating Keys separate ly to fit specific machines. INFO+
For a complete listing of components, see pages 417-419.
10% OFF INDIVIDUAL ONE-FIXTURE SETS CL-MF25-SS1C PIECES
PRICES WHEN ORDERED
NUMBER OF
SIZE
IN THESE SETS!
PART NO.
MINI
1082
STANDARD
CL-MF50-SS1C
838
HEAVY
FOUR-FIXTURE SETS CL-MF40-SS1C 1034
MINI CL-MF25-SS4C 2939
STANDARD CL-MF40-SS4C 2702
HEAVY CL-MF50-SS4C 2262
