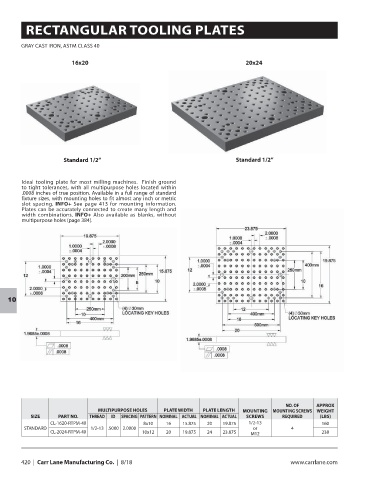

RECTANGULAR TOOLING PLATES
GRAY CAST IRON, ASTM CLASS 40
16x20 20x24
Standard 1/2” Standard 1/2”
Ideal tooling plate for most milling machines. Finish ground
to tight tolerances, with all multipurpose holes located within
.0008 inches of true position. Available in a full range of standard
fixture sizes, with mounting holes to fit almost any inch or metric
slot spacing. INFO+ See page 413 for mounting information.
Plates can be accurately connected to create many length and
width combinations. INFO+ Also available as blanks, without
multipurpose holes (page 384).
10
NO. OF APPROX
MULTIPURPOSE HOLES PLATE WIDTH PLATE LENGTH MOUNTING MOUNTING SCREWS WEIGHT
SIZE PART NO. THREAD ID SPACING PATTERN NOMINAL ACTUAL NOMINAL ACTUAL SCREWS REQUIRED (LBS)
CL-1620-RTPM-40 8x10 16 15.875 20 19.875 1/2-13 160
STANDARD 1/2-13 .5000 2.0000 or 4
CL-2024-RTPM-40 10x12 20 19.875 24 23.875 M12 238
