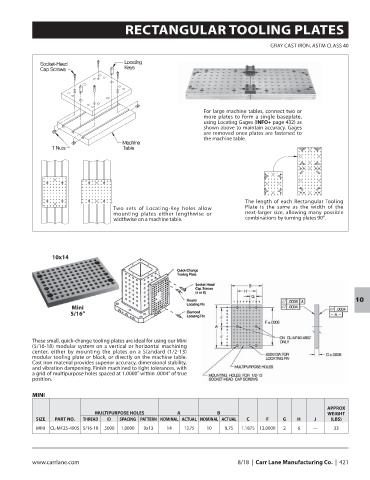

RECTANGULAR TOOLING PLATES

GRAY CAST IRON, ASTM CLASS 40

For large machine tables, connect two or
more plates to form a single baseplate,
using Locating Gages (INFO+ page 432) as
shown above to maintain accuracy. Gages
are removed once plates are fastened to
the machine table.

The length of each Rectangular Tooling
Two sets of Locating-Key holes allow Plate is the same as the width of the
mounting plates either lengthwise or next-larger size, allowing many possible
widthwise on a machine table. combinations by turning plates 90°.

10x14

10
Mini
5/16”

These small, quick-change tooling plates are ideal for using our Mini
(5/16-18) modular system on a vertical or horizontal machining
center, either by mounting the plates on a Standard (1/2-13)
modular tooling plate or block, or directly on the machine table.
Cast iron material provides superior accuracy, dimensional stability,
and vibration dampening. Finish machined to tight tolerances, with
a grid of multipurpose holes spaced at 1.0000” within .0004” of true
position.

MINI

APPROX
MULTIPURPOSE HOLES A B WEIGHT
SIZE PART NO. THREAD ID SPACING PATTERN NOMINAL ACTUAL NOMINAL ACTUAL C F G H J (LBS)
MINI CL-MF25-4905 5/16-18 .5000 1.0000 9x13 14 13.75 10 9.75 1.1875 12.0000 2 6 — 33
