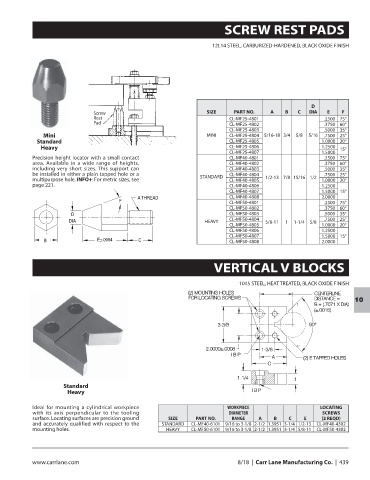

SCREW REST PADS

12L14 STEEL, CARBURIZED-HARDENED, BLACK OXIDE FINISH

D
Screw SIZE PART NO. A B C DIA E F
Rest CL-MF25-4801 .2500 75°
Pad CL-MF25-4802 .3750 60°
CL-MF25-4803 .5000 35°
Mini MINI CL-MF25-4804 5/16-18 3/4 5/8 5/16 .7500 25°
Standard CL-MF25-4805 1.0000 20°
Heavy CL-MF25-4806 1.2500 15°
CL-MF25-4807 1.5000
Precision height locator with a small contact CL-MF40-4801 .2500 75°
area. Available in a wide range of heights, CL-MF40-4802 .3750 60°
including very short sizes. This support can CL-MF40-4803 .5000 35°
be installed in either a plain tapped hole or a CL-MF40-4804 .7500 25°
multipurpose hole. INFO+: For metric sizes, see STANDARD CL-MF40-4805 1/2-13 7/8 15/16 1/2 1.0000 20°
page 221. CL-MF40-4806 1.2500
CL-MF40-4807 1.5000 15°
A THREAD CL-MF40-4808 2.0000
F CL-MF50-4801 .2500 75°
CL-MF50-4802 .3750 60°
D CL-MF50-4803 .5000 35°
DIA HEAVY CL-MF50-4804 5/8-11 1 1-1/4 5/8 .7500 25°
CL-MF50-4805 1.0000 20°
CL-MF50-4806 1.2500
CL-MF50-4807 1.5000 15°
B E(.0004 C CL-MF50-4808 2.0000

VERTICAL V BLOCKS

1045 STEEL, HEAT TREATED, BLACK OXIDE FINISH

10

Standard
Heavy

Ideal for mounting a cylindrical workpiece WORKPIECE LOCATING
with its axis perpendicular to the tooling DIAMETER SCREWS
surface. Locating surfaces are precision ground SIZE PART NO. RANGE A B C E (2 REQD)
and accurately qualified with respect to the STANDARD CL-MF40-6101 9/16 to 3-1/8 2-1/2 1.3951 3-1/4 1/2-13 CL-MF40-4302
mounting holes. HEAVY CL-MF50-6101 9/16 to 3-1/8 2-1/2 1.3951 3-1/4 5/8-11 CL-MF50-4302
