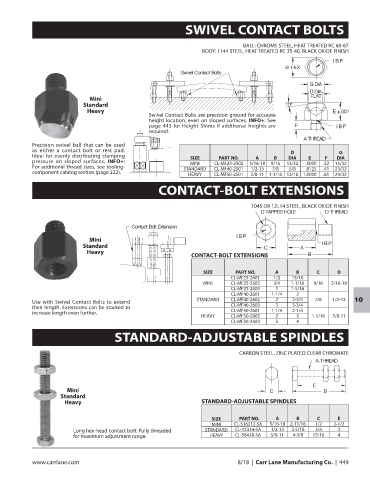

Page 451 - CarrLaneCatalog_2019ed-c.pdf

SWIVEL CONTACT BOLTS

BALL: CHROME STEEL, HEAT TREATED RC 60-67
BODY: 1144 STEEL, HEAT TREATED RC 35-40, BLACK OXIDE FINISH

Mini
Standard
Heavy
Swivel Contact Bolts are precision ground for accurate
height location, even on sloped surfaces. INFO+: See
page 443 for Height Shims if additional heights are
required.
Precision swivel ball that can be used
as either a contact bolt or rest pad. D G
Ideal for evenly distributing clamping SIZE PART NO. A B DIA E F DIA
pressure on sloped surfaces. INFO+: MINI CL-MF25-2502 5/16-18 9/16 13/32 1.5000 .32 15/32
For additional thread sizes, see tooling- STANDARD CL-MF40-2501 1/2-13 7/8 5/8 1.8125 .41 23/32
component catalog section (page 222).
HEAVY CL-MF50-2501 5/8-11 1-1/16 13/16 1.0000 .61 29/32
CONTACT-BOLT EXTENSIONS

1045 OR 12L14 STEEL, BLACK OXIDE FINISH

Mini
Standard
Heavy
CONTACT-BOLT EXTENSIONS

SIZE PART NO. A B C D
CL-MF25-2601 1/2 13/16
MINI CL-MF25-2602 3/4 1-1/16 9/16 5/16-18
CL-MF25-2603 1 1-5/16
CL-MF40-2601 1-1/4 2
STANDARD CL-MF40-2602 2 2-3/4 7/8 1/2-13
Use with Swivel Contact Bolts to extend 10
their length. Extensions can be stacked to CL-MF40-2603 3 3-3/4
increase length even further. CL-MF50-2601 1-1/4 2-1/4
HEAVY CL-MF50-2602 2 3 1-1/16 5/8-11
CL-MF50-2603 3 4
STANDARD-ADJUSTABLE SPINDLES

CARBON STEEL, ZINC PLATED CLEAR CHROMATE

Mini
Standard
Heavy STANDARD-ADJUSTABLE SPINDLES

SIZE PART NO. A B C E
MINI CL-516212-SA1 5/16-18 2-11/16 1/2 2-1/2
Long hex-head contact bolt. Fully threaded STANDARD CL-12314-SA1 1/2-13 3-5/16 3/4 3
for maximum adjustment range. HEAVY CL-58438-SA1 5/8-11 4-3/8 15/16 4

www.carrlane.com 8/18 | Carr Lane Manufacturing Co. | 449
