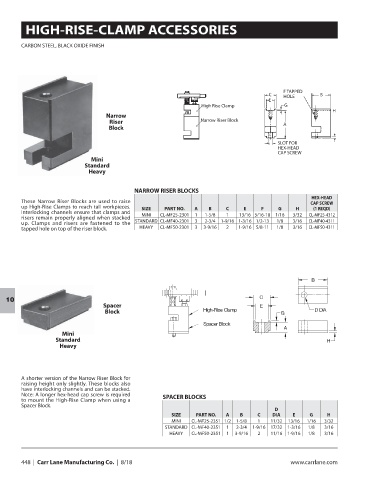

HIGH-RISE-CLAMP ACCESSORIES

CARBON STEEL, BLACK OXIDE FINISH

F TAPPED
C B
HOLE
E
High Rise Clamp G
H
Narrow
Riser Narrow Riser Block A
Block

SLOT FOR
HEX-HEAD
CAP SCREW
Mini
Standard
Heavy

NARROW RISER BLOCKS
HEX-HEAD
These Narrow Riser Blocks are used to raise CAP SCREW
up High-Rise Clamps to reach tall workpieces. SIZE PART NO. A B C E F G H (1 REQD)
Interlocking channels ensure that clamps and MINI CL-MF25-2301 1 1-5/8 1 13/16 5/16-18 1/16 3/32 CL-MF25-4312
risers remain properly aligned when stacked
up. Clamps and risers are fastened to the STANDARD CL-MF40-2301 3 2-3/4 1-9/16 1-3/16 1/2-13 1/8 3/16 CL-MF40-4311
tapped hole on top of the riser block. HEAVY CL-MF50-2301 3 3-9/16 2 1-9/16 5/8-11 1/8 3/16 CL-MF50-4311

10
Spacer
Block

Mini
Standard
Heavy

A shorter version of the Narrow Riser Block for
raising height only slightly. These blocks also
have interlocking channels and can be stacked.
Note: A longer hex-head cap screw is required SPACER BLOCKS
to mount the High-Rise Clamp when using a
Spacer Block.
D
SIZE PART NO. A B C DIA E G H
MINI CL-MF25-2351 1/2 1-5/8 1 11/32 13/16 1/16 3/32
STANDARD CL-MF40-2351 1 2-3/4 1-9/16 17/32 1-3/16 1/8 3/16
HEAVY CL-MF50-2351 1 3-9/16 2 11/16 1-9/16 1/8 3/16

448 | Carr Lane Manufacturing Co. | 8/18 www.carrlane.com
