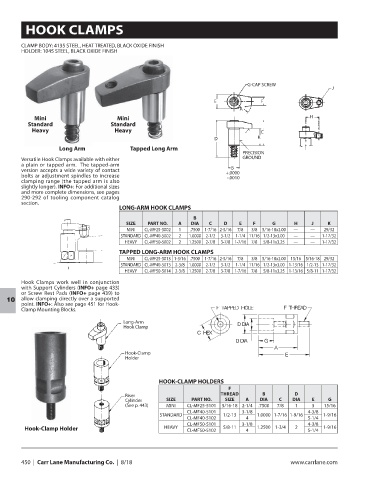

Page 452 - CarrLaneCatalog_2019ed-c.pdf

HOOK CLAMPS

CLAMP BODY: 4135 STEEL, HEAT TREATED, BLACK OXIDE FINISH
HOLDER: 1045 STEEL, BLACK OXIDE FINISH

G-CAP SCREW
J
E F
A
Mini Mini H
Standard Standard
Heavy Heavy C
D K
Long Arm Tapped Long Arm
PRECISION
Versatile Hook Clamps available with either GROUND
a plain or tapped arm. The tapped-arm
B
version accepts a wide variety of contact +.0000
bolts ar adjustment spindles to increase -.0010
clamping range (the tapped arm is also
slightly longer). INFO+: For additional sizes
and more complete dimensions, see pages
290-292 of tooling component catalog
section.
LONG-ARM HOOK CLAMPS
B
SIZE PART NO. A DIA C D E F G H J K
MINI CL-MF25-5002 1 .7500 1-7/16 2-5/16 7/8 3/8 5/16-18x2.00 — — 29/32
STANDARD CL-MF40-5002 2 1.0000 2-1/2 3-1/2 1-1/4 11/16 1/2-13x3.00 — — 1-17/32
HEAVY CL-MF50-5002 2 1.2500 2-7/8 3-7/8 1-7/16 7/8 5/8-11x3.25 — — 1-17/32
TAPPED LONG-ARM HOOK CLAMPS
MINI CL-MF25-5013 1-3/16 .7500 1-7/16 2-5/16 7/8 3/8 5/16-18x2.00 15/16 5/16-18 29/32
STANDARD CL-MF40-5013 2-3/8 1.0000 2-1/2 3-1/2 1-1/4 11/16 1/2-13x3.00 1-13/16 1/2-13 1-17/32
HEAVY CL-MF50-5014 2-3/8 1.2500 2-7/8 3-7/8 1-7/16 7/8 5/8-11x3.25 1-13/16 5/8-11 1-17/32

Hook Clamps work well in conjunction
with Support Cylinders (INFO+ page 433)
or Screw Rest Pads (INFO+ page 439) to
allow clamping directly over a supported
point. INFO+: Also see page 451 for Hook-
10
Clamp Mounting Blocks.
Long-Arm
Hook Clamp

Hook-Clamp
Holder

HOOK-CLAMP HOLDERS
F
Riser THREAD B D
Cylinder SIZE PART NO. SIZE A DIA C DIA E G
(See p. 443) MINI CL-MF25-5101 5/16-18 2-1/4 .7500 7/8 1 3 15/16
CL-MF40-5101 3-1/8 4-3/8
STANDARD 1/2-13 1.0000 1-7/16 1-9/16 1-9/16
CL-MF40-5102 4 5-1/4
CL-MF50-5101 3-1/8 4-3/8
Hook-Clamp Holder HEAVY CL-MF50-5102 5/8-11 4 1.2500 1-3/4 2 5-1/4 1-9/16

450 | Carr Lane Manufacturing Co. | 8/18 www.carrlane.com
