Electric Power Units

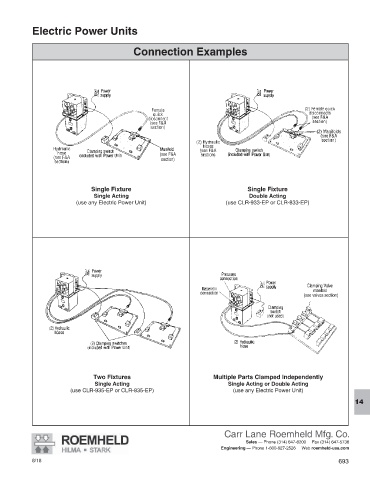

Connection Examples
(see F&A
section)
Single Fixture Single Fixture
Single Acting Double Acting
(use any Electric Power Unit) (use CLR-933-EP or CLR-833-EP)
(see valves section)
Two Fixtures Multiple Parts Clamped Independently
Single Acting Single Acting or Double Acting
(use CLR-935-EP or CLR-835-EP) (use any Electric Power Unit)
