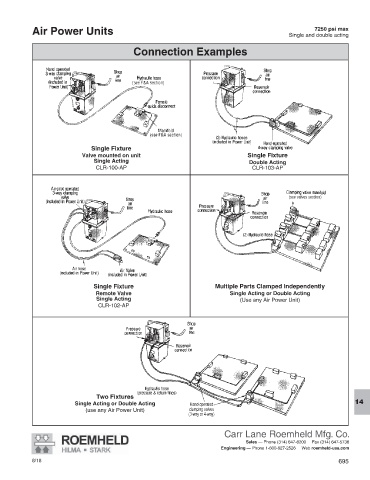

Air Power Units 7250 psi max
Single and double acting
Connection Examples
(see F&A section)
Single Fixture
Valve mounted on unit Single Fixture
Single Acting Double Acting
CLR-100-AP CLR-103-AP
(see valves section)
Single Fixture Multiple Parts Clamped Independently
Remote Valve Single Acting or Double Acting
Single Acting (Use any Air Power Unit)
CLR-102-AP
Two Fixtures
Single Acting or Double Acting 14
(use any Air Power Unit)
