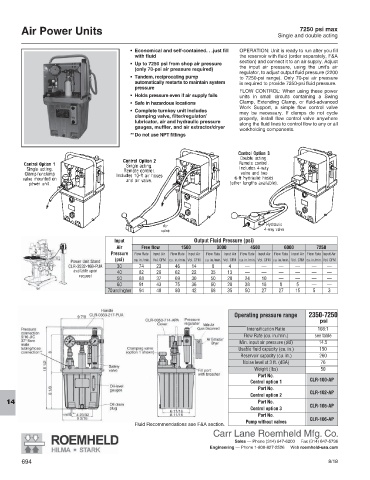

Page 696 - CarrLaneCatalog_2019ed-c.pdf

Air Power Units 7250 psi max
Single and double acting

• Economical and self-contained. . .just fill OPERATION: Unit is ready to run after you fill
with fluid the reservoir with fluid (order separately, F&A
section) and connect it to an air supply. Adjust
• Up to 7250 psi from shop air pressure
(only 70-psi air pressure required) the input air pressure, using the unit’s air
regulator, to adjust output fluid pressure (2200
• Tandem, reciprocating pump to 7250-psi range). Only 70-psi air pressure
automatically restarts to maintain system is required to provide 7250-psi fluid pressure.
pressure
FLOW CONTROL: When using these power
• Holds pressure even if air supply fails units in small circuits containing a Swing
• Safe in hazardous locations Clamp, Extending Clamp, or fluid-advanced
Work Support, a simple flow control valve
• Complete turnkey unit includes may be necessary. If clamps do not cycle
clamping valve, filter/regulator/ properly, install flow control valve anywhere
lubricator, air and hydraulic pressure along the fluid lines to control flow to any or all
gauges, muffler, and air extractor/dryer
workholding components.
** Do not use NPT fittings

Input Output Fluid Pressure (psi)
Air Free flow 1500 3000 4500 6000 7250
Pressure Flow Rate Input Air Flow Rate Input Air Flow Rate Input Air Flow Rate Input Air Flow Rate Input Air Flow Rate Input Air
(psi) cu. in./min. Vol. CFM cu. in./min. Vol. CFM cu. in./min. Vol. CFM cu. in./min. Vol. CFM cu. in./min. Vol. CFM cu. in./min. Vol. CFM
30 74 23 46 14 8 4 –– –– –– –– –– ––
available upon 40 82 29 62 22 35 13 –– –– –– –– –– ––
request
50 88 37 69 30 50 20 24 10 –– –– –– ––
60 91 43 75 36 60 28 38 18 8 5 –– ––
70 and higher 94 48 80 42 68 35 50 27 27 15 5 3

Operating pressure range 2350-7250
psi

Intensification Ratio 108:1
Flow Rate (cu. in./min.) see table
Min. input air pressure (psi) 14.5
Usable fluid capacity (cu. in.) 150
Reservoir capacity (cu. in.) 260
Noise level at 3 ft. (dBA) 76
Weight (lbs) 50
Part No.
CLR-100-AP
Control option 1
Part No.
CLR-102-AP
Control option 2
Part No.
14
CLR-105-AP
Control option 3
Part No.
CLR-106-AP
Pump without valves
Fluid Recommendations see F&A section.
