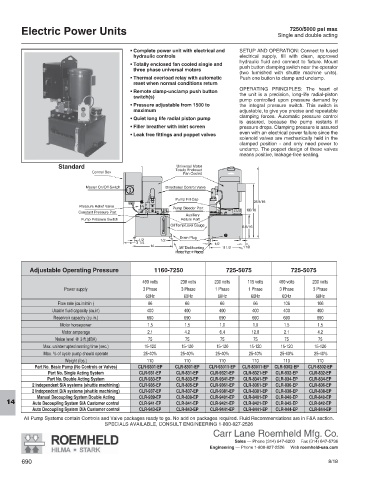

Electric Power Units 7250/5000 psi max
Single and double acting

• Complete power unit with electrical and SETUP AND OPERATION: Connect to fused
hydraulic controls electrical supply, fill with clean, approved
hydraulic fluid and connect to fixture. Mount
• Totally enclosed fan cooled single and
three phase universal motors push button clamping switch near the operator
(two furnished with shuttle machine units).
• Thermal overload relay with automatic Push one button to clamp and unclamp.
reset when normal conditions return
OPERATING PRINCIPLES: The heart of
• Remote clamp-unclamp push button
switch(s) the unit is a precision, long-life radial-piston
pump controlled upon pressure demand by
• Pressure adjustable from 1500 to the integral pressure switch. This switch is
maximum adjustable, to give you precise and repeatable
clamping forces. Automatic pressure control
• Quiet long life radial piston pump
is assured, because the pump restarts if
• Filler breather with inlet screen pressure drops. Clamping pressure is assured
even with an electrical power failure since the
• Leak free fittings and poppet valves
solenoid valves are mechanically held in the
clamped position - and only need power to
unclamp. The poppet design of these valves
means positive, leakage-free sealing.
Standard Totally Enclosed
Universal Motor
Control Box
Fan Cooled
Master On/Off Switch Directional Control Valve

Pump Fill Cap
25 5/16
Pressure Relief Valve
Pump Bleeder Port
Constant Pressure Port 195/16
Auxiliary
Pump Pressure Switch Return Port
Oil Temp/Level Gauge 8 5/16
Drain Plug
1/2 1/2 1 1
3 1/4 1/2
14 1 1/8
3/8” Dia Mounting 11 1/2
Holes Typ. 4 Places

Adjustable Operating Pressure 1160-7250 725-5075 725-5075
460 volts 230 volts 230 volts 115 volts 460 volts 230 volts
Power supply 3 Phase 3 Phase 1 Phase 1 Phase 3 Phase 3 Phase
60Hz 60Hz 60Hz 60Hz 60Hz 60Hz
Flow rate (cu.in/min ) 66 66 66 66 106 106
Usable fluid capacity (cu.in) 400 400 400 400 400 400
Reservoir capacity (cu.in.) 690 690 690 690 690 690
Motor horsepower 1.5 1.5 1.0 1.0 1.5 1.5
Motor amperage 2.1 4.2 6.4 12.8 2.1 4.2
Noise level @ 3 ft.(dBA) 75 75 75 75 75 75
Max. uninterrupted running time (sec.) 15-120 15-120 15-120 15-120 15-120 15-120
Max. % of cycle pump should operate 25-40% 25-40% 25-40% 25-40% 25-40% 25-40%
Weight (Ibs.) 110 110 110 110 110 110
Part No. Basic Pump (No Controls or Valves) CLR-9301-EP CLR-8301-EP CLR-93011-EP CLR-83011-EP CLR-9302-EP CLR-8302-EP
Part No. Single Acting System CLR-931-EP CLR-831-EP CLR-9321-EP CLR-8321-EP CLR-932-EP CLR-832-EP
Part No. Double Acting System CLR-933-EP CLR-833-EP CLR-9341-EP CLR-8341-EP CLR-934-EP CLR-834-EP
2 Independent S/A systems (shuttle machining) CLR-935-EP CLR-835-EP CLR-9361-EP CLR-8361-EP CLR-936-EP CLR-836-EP
2 Independent D/A systems (shuttle machining) CLR-937-EP CLR-837-EP CLR-9381-EP CLR-8381-EP CLR-938-EP CLR-838-EP
Manual Decoupling System Double Acting CLR-939-EP CLR-839-EP CLR-9401-EP CLR-8401-EP CLR-940-EP CLR-840-EP
Auto Decoupling System S/A Customer control CLR-941-EP CLR-841-EP CLR-9421-EP CLR-8421-EP CLR-942-EP CLR-842-EP
14
Auto Decoupling System D/A Customer control CLR-943-EP CLR-843-EP CLR-9441-EP CLR-8441-EP CLR-944-EP CLR-844-EP
All Pump Systems contain Controls and Valve packages ready to go. No add on packages required. Fluid Recommendations are in F&A section.
SPECIALS AVAILABLE, CONSULT ENGINEERING 1-800-827-2526
