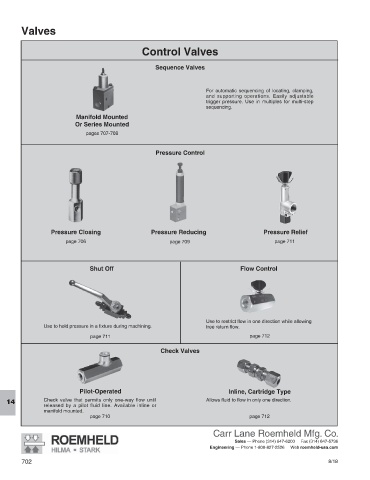

P. 704
Valves
Control Valves
Sequence Valves
For automatic sequencing of locating, clamping,
and supporting operations. Easily adjustable
trigger pressure. Use in multiples for multi-step
sequencing.
Manifold Mounted
Or Series Mounted
pages 707-708
Pressure Control
Pressure Closing Pressure Reducing Pressure Relief
page 706 page 709 page 711
Shut Off Flow Control
Use to restrict flow in one direction while allowing
Use to hold pressure in a fixture during machining. free return flow.
page 711 page 712
Check Valves
Pilot-Operated Inline, Cartridge Type
Check valve that permits only one-way flow until Allows fluid to flow in only one direction.
released by a pilot fluid line. Available inline or
14
manifold mounted.
page 710 page 712
