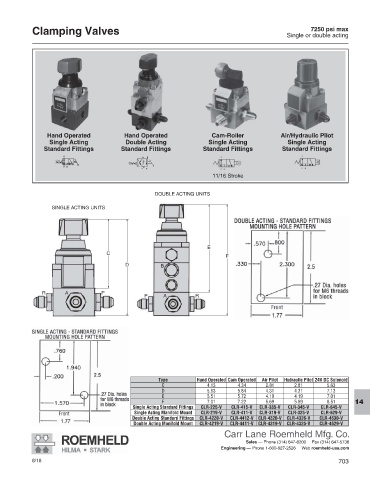

Clamping Valves 7250 psi max
Single or double acting

Hand Operated Hand Operated Cam-Roller Air/Hydraulic Pilot
Single Acting Double Acting Single Acting Single Acting
Standard Fittings Standard Fittings Standard Fittings Standard Fittings

11/16 Stroke

Type Hand Operated Cam Operated Air Pilot Hydraulic Pilot 24V DC Solenoid
C 4.13 4.34 2.81 2.81 5.63
D 5.63 5.84 4.31 4.31 7.13
E 5.51 5.72 4.19 4.19 7.01
F 7.01 7.22 5.69 5.69 8.51
14
Single Acting Standard Fittings CLR-225-V CLR-415-V CLR-335-V CLR-345-V CLR-645-V
Single Acting Manifold Mount CLR-219-V CLR-411-V CLR-319-V CLR-325-V CLR-629-V
Double Acting Standard Fittings CLR-4220-V CLR-4412-V CLR-4320-V CLR-4326-V CLR-4630-V
Double Acting Manifold Mount CLR-4219-V CLR-4411-V CLR-4319-V CLR-4325-V CLR-4629-V
Carr Lane Roemheld Mfg. Co.
Sales — Phone (314) 647-6200 Fax (314) 647-5736
Engineering — Phone 1-800-827-2526 Web roemheld-usa.com
