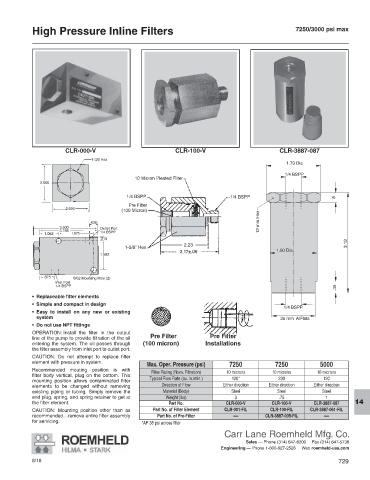

High Pressure Inline Filters 7250/3000 psi max

CLR-000-V CLR-100-V CLR-3887-087

2.23
3.17±.06

• Replaceable filter elements
• Simple and compact in design
• Easy to install on any new or existing
system
• Do not use NPT fittings
OPERATION: Install the filter in the output
line of the pump to provide filtration of the oil Pre Filter Pre Filter
entering the system. The oil passes through (100 micron) Installations
the filter assembly from inlet port to outlet port.
CAUTION: Do not attempt to replace filter
element with pressure in system.
Max. Oper. Pressure (psi) 7250 7250 5000
Recommended mouting position is with Filter Rating (Nom. Filtration) 10 microns 10 microns 10 microns
filter body vertical, plug on the bottom. This
mounting position allows contaminated filter Typical Flow Rate (cu. in./min.) 120* 230 120
elements to be changed without removing Direction of Flow Either direction Either direction Either direction
existing piping or tubing. Simply remove the Material (Body) Steel Steel Steel
end plug, spring, and spring retainer to get at Weight (lbs) 3 .75 1
the filter element. Part No. CLR-000-V CLR-100-V CLR-3887-087 14
CAUTION: Mounting position other than as Part No. of Filter Element CLR-001-FIL CLR-100-FIL CLR-3887-061-FIL
recommended…remove entire filter assembly Part No. of Pre-Filter — CLR-3887-009-FIL —
for servicing. *AP 35 psi across filter
