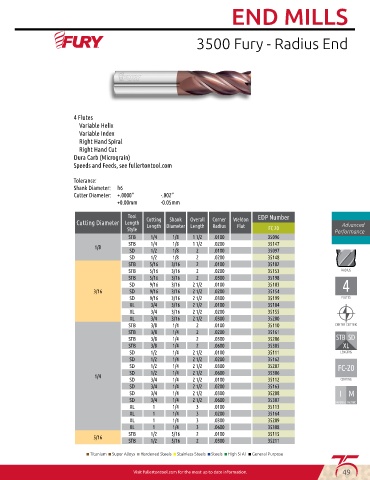

Page 51 - 75th-Online-Anniversary-Catalog

END MILLS

3500 Fury - Radius End

4 Flutes
Variable Helix
Variable Index
Right Hand Spiral
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.002”
+0.00mm -0.05mm

Tool EDP Number
Cutting Diameter Length Cutting Shank Overall Corner Weldon Advanced
Radius
Flat
Length Diameter Length
Style FC 20 Performance
STB 1/4 1/8 1 1/2 .0100 35096
STB 1/4 1/8 1 1/2 .0200 35147
1/8
SD 1/2 1/8 2 .0100 35097
SD 1/2 1/8 2 .0200 35148
STB 5/16 3/16 2 .0100 35102
STB 5/16 3/16 2 .0200 35153
STB 5/16 3/16 2 .0300 35198
SD 9/16 3/16 2 1/2 .0100 35103
3/16 SD 9/16 3/16 2 1/2 .0200 35154
SD 9/16 3/16 2 1/2 .0300 35199
XL 3/4 3/16 2 1/2 .0100 35104
XL 3/4 3/16 2 1/2 .0200 35155
XL 3/4 3/16 2 1/2 .0300 35200
STB 3/8 1/4 2 .0100 35110
STB 3/8 1/4 2 .0200 35161
STB 3/8 1/4 2 .0300 35206
STB 3/8 1/4 2 .0600 35305
SD 1/2 1/4 2 1/2 .0100 35111
SD 1/2 1/4 2 1/2 .0200 35162
SD 1/2 1/4 2 1/2 .0300 35207
SD 1/2 1/4 2 1/2 .0600 35306
1/4
SD 3/4 1/4 2 1/2 .0100 35112
SD 3/4 1/4 2 1/2 .0200 35163
SD 3/4 1/4 2 1/2 .0300 35208 I M
SD 3/4 1/4 2 1/2 .0600 35307 IMPERIAL METRIC
XL 1 1/4 3 .0100 35113
XL 1 1/4 3 .0200 35164
XL 1 1/4 3 .0300 35209
XL 1 1/4 3 .0600 35308
STB 1/2 5/16 2 .0100 35115
5/16
STB 1/2 5/16 2 .0300 35211
■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ High Si Al ■ General Purpose
