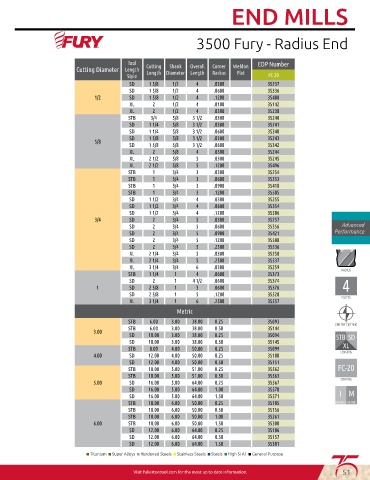

END MILLS

3500 Fury - Radius End

Tool EDP Number
Cutting Diameter Length Cutting Shank Overall Corner Weldon
Length Diameter Length
Flat
Radius
Style FC 20
SD 1 5/8 1/2 4 .0300 35237
SD 1 5/8 1/2 4 .0600 35336
1/2 SD 1 5/8 1/2 4 .1200 35488
XL 2 1/2 4 .0100 35142
XL 2 1/2 4 .0300 35238
STB 3/4 5/8 3 1/2 .0300 35240
SD 1 1/4 5/8 3 1/2 .0300 35241
SD 1 1/4 5/8 3 1/2 .0600 35340
SD 1 5/8 5/8 3 1/2 .0300 35243
5/8
SD 1 5/8 5/8 3 1/2 .0600 35342
XL 2 5/8 4 .0300 35244
XL 2 1/2 5/8 5 .0300 35245
XL 2 1/2 5/8 5 .1200 35496
STB 1 3/4 3 .0300 35254
STB 1 3/4 3 .0600 35353
STB 1 3/4 3 .0900 35418
STB 1 3/4 3 .1200 35505
SD 1 1/2 3/4 4 .0300 35255
SD 1 1/2 3/4 4 .0600 35354
SD 1 1/2 3/4 4 .1200 35506
3/4 SD 2 3/4 5 .0300 35257
SD 2 3/4 5 .0600 35356 Advanced
SD 2 3/4 5 .0900 35421 Performance
SD 2 3/4 5 .1200 35508
SD 2 3/4 5 .2500 35536
XL 2 1/4 3/4 5 .0300 35258
XL 2 1/4 3/4 5 .2500 35537
XL 3 1/4 3/4 6 .0300 35259
STB 1 1/4 1 4 .0600 35373
SD 2 1 4 1/2 .0600 35374
1 SD 2 5/8 1 5 .0600 35376
SD 2 5/8 1 5 .1200 35528
XL 3 1/4 1 6 .2500 35557
Metric

STB 6.00 3.00 38.00 0.25 35093
STB 6.00 3.00 38.00 0.50 35144
3.00
SD 10.00 3.00 38.00 0.25 35094
SD 10.00 3.00 38.00 0.50 35145
STB 8.00 4.00 50.00 0.25 35099
4.00 SD 12.00 4.00 50.00 0.25 35100
SD 12.00 4.00 50.00 0.50 35151
STB 10.00 5.00 51.00 0.25 35562
STB 10.00 5.00 51.00 0.50 35563
5.00 SD 16.00 5.00 64.00 0.25 35567
SD 16.00 5.00 64.00 1.00 35570
SD 16.00 5.00 64.00 1.50 35571 I M
STB 10.00 6.00 50.00 0.25 35105 IMPERIAL METRIC
STB 10.00 6.00 50.00 0.50 35156
STB 10.00 6.00 50.00 1.00 35261
6.00 STB 10.00 6.00 50.00 1.50 35300
SD 12.00 6.00 64.00 0.25 35106
SD 12.00 6.00 64.00 0.50 35157
SD 12.00 6.00 64.00 1.50 35301
■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ High Si Al ■ General Purpose
