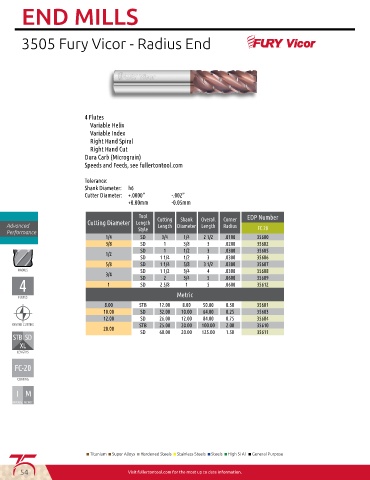

END MILLS

3505 Fury Vicor - Radius End

4 Flutes
Variable Helix
Variable Index
Right Hand Spiral
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.002”
+0.00mm -0.05mm

Tool EDP Number
Cutting Diameter Length Cutting Shank Overall Corner
Advanced Length Diameter Length Radius FC 20
Performance Style
1/4 SD 3/4 1/4 2 1/2 .0100 35600
3/8 SD 1 3/8 3 .0200 35602
SD 1 1/2 3 .0300 35605
1/2
SD 1 1/4 1/2 3 .0300 35606
5/8 SD 1 1/4 5/8 3 1/2 .0300 35607
SD 1 1/2 3/4 4 .0300 35608
3/4
SD 2 3/4 5 .0600 35609
1 SD 2 5/8 1 5 .0600 35612
Metric
8.00 STB 12.00 8.00 50.00 0.50 35601
10.00 SD 32.00 10.00 64.00 0.25 35603
12.00 SD 26.00 12.00 84.00 0.75 35604
STB 25.00 20.00 100.00 2.00 35610
20.00
SD 60.00 20.00 125.00 1.50 35611

I M

IMPERIAL METRIC

■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ High Si Al ■ General Purpose
