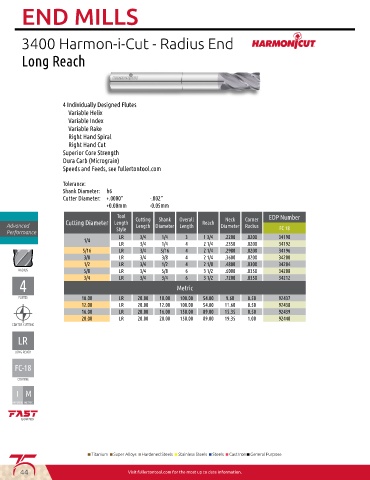

END MILLS

3400 Harmon-i-Cut - Radius End

Long Reach

4 Individually Designed Flutes
Variable Helix
Variable Index
Variable Rake
Right Hand Spiral
Right Hand Cut
Superior Core Strength
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.002”
+0.00mm -0.05mm
Tool EDP Number
Cutting Diameter Length Cutting Shank Overall Reach Neck Corner
Advanced Length Diameter Length Diameter Radius FC 18
Performance Style
1/4 LR 3/4 1/4 3 1 3/4 .2200 .0200 34198
LR 3/4 1/4 4 2 1/4 .2350 .0200 34192
5/16 LR 3/4 5/16 4 2 1/4 .2980 .0200 34196
3/8 LR 3/4 3/8 4 2 1/4 .3600 .0200 34200
1/2 LR 3/4 1/2 4 2 1/8 .4800 .0300 34204
5/8 LR 3/4 5/8 6 3 1/2 .6000 .0350 34208
3/4 LR 3/4 3/4 6 3 1/2 .7200 .0350 34212
Metric

10.00 LR 20.00 10.00 100.00 54.00 9.60 0.50 92437
12.00 LR 20.00 12.00 100.00 54.00 11.60 0.50 92438
16.00 LR 20.00 16.00 150.00 89.00 15.35 0.50 92439
20.00 LR 20.00 20.00 150.00 89.00 19.35 1.00 92440

I M

IMPERIAL METRIC

■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ General Purpose
