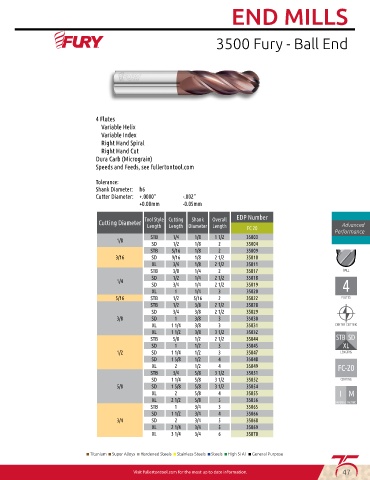

Page 49 - 75th-Online-Anniversary-Catalog

END MILLS

3500 Fury - Ball End

4 Flutes
Variable Helix
Variable Index
Right Hand Spiral
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.002”
+0.00mm -0.05mm

Cutting Diameter Tool Style Cutting Shank Overall EDP Number
Length Length Diameter Length FC 20 Advanced
Performance
STB 1/4 1/8 1 1/2 35003
1/8
SD 1/2 1/8 2 35004
STB 5/16 1/8 2 35009
3/16 SD 9/16 1/8 2 1/2 35010
XL 3/4 1/8 2 1/2 35011
STB 3/8 1/4 2 35017
SD 1/2 1/4 2 1/2 35018
1/4
SD 3/4 1/4 2 1/2 35019
XL 1 1/4 3 35020
5/16 STB 1/2 5/16 2 35022
STB 1/2 3/8 2 1/2 35028
SD 3/4 3/8 2 1/2 35029
3/8 SD 1 3/8 3 35030
XL 1 1/4 3/8 3 35031
XL 1 1/2 3/8 3 1/2 35032
STB 5/8 1/2 2 1/2 35044
SD 1 1/2 3 35045
1/2 SD 1 1/4 1/2 3 35047
SD 1 5/8 1/2 4 35048
XL 2 1/2 4 35049
STB 3/4 5/8 3 1/2 35051
SD 1 1/4 5/8 3 1/2 35052
5/8 SD 1 5/8 5/8 3 1/2 35054
XL 2 5/8 4 35055 I M
XL 2 1/2 5/8 5 35056 IMPERIAL METRIC
STB 1 3/4 3 35065
SD 1 1/2 3/4 4 35066
3/4 SD 2 3/4 5 35068
XL 2 1/4 3/4 5 35069
XL 3 1/4 3/4 6 35070

■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ High Si Al ■ General Purpose

Visit fullertontool.com for the most up to date information. 47
