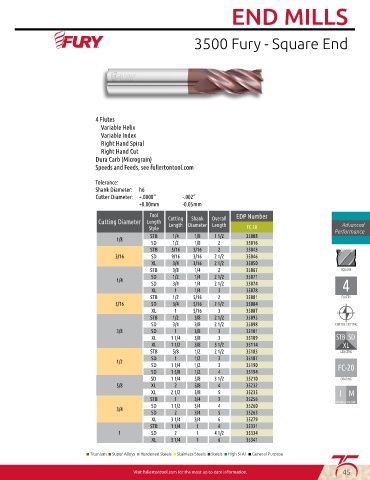

Page 47 - 75th-Online-Anniversary-Catalog

END MILLS

3500 Fury - Square End

4 Flutes
Variable Helix
Variable Index
Right Hand Spiral
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.002”
+0.00mm -0.05mm

Tool EDP Number
Cutting Diameter Length Cutting Shank Overall Advanced
Length Diameter Length
Style FC 20 Performance
STB 1/4 1/8 1 1/2 35008
1/8
SD 1/2 1/8 2 35016
STB 5/16 3/16 2 35043
3/16 SD 9/16 3/16 2 1/2 35046
XL 3/4 3/16 2 1/2 35050
STB 3/8 1/4 2 35067
SD 1/2 1/4 2 1/2 35071
1/4
SD 3/4 1/4 2 1/2 35074
XL 1 1/4 3 35078
STB 1/2 5/16 2 35081
5/16 SD 3/4 5/16 2 1/2 35084
XL 1 5/16 3 35087
STB 1/2 3/8 2 1/2 35095
SD 3/4 3/8 2 1/2 35098
3/8 SD 1 3/8 3 35101
XL 1 1/4 3/8 3 35109
XL 1 1/2 3/8 3 1/2 35114
STB 5/8 1/2 2 1/2 35183
SD 1 1/2 3 35187
1/2
SD 1 1/4 1/2 3 35190
SD 1 5/8 1/2 4 35194
SD 1 1/4 5/8 3 1/2 35210
5/8 XL 2 5/8 4 35232
XL 2 1/2 5/8 5 35235 I M
STB 1 3/4 3 35256 IMPERIAL METRIC
SD 1 1/2 3/4 4 35260
3/4
SD 2 3/4 5 35265
XL 3 1/4 3/4 6 35279
STB 1 1/4 1 4 35331
1 SD 2 1 4 1/2 35334
XL 3 1/4 1 6 35341

■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ High Si Al ■ General Purpose

Visit fullertontool.com for the most up to date information. 45
