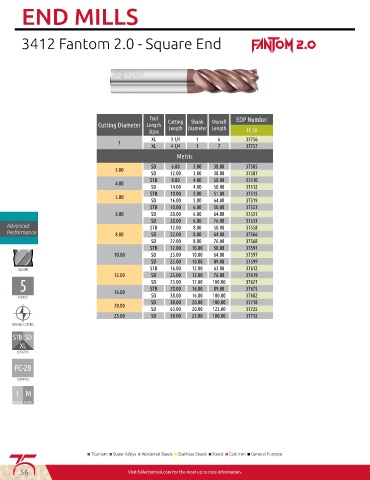

Page 58 - 75th-Online-Anniversary-Catalog

END MILLS

3412 Fantom 2.0 - Square End

Tool Cutting Shank Overall EDP Number
Cutting Diameter Length Length Diameter Length
Style FC 20
XL 3 1/4 1 6 37756
1
XL 4 1/4 1 7 37757
Metric

SD 6.00 3.00 38.00 37505
3.00
SD 12.00 3.00 38.00 37507
STB 8.00 4.00 50.00 37510
4.00
SD 14.00 4.00 50.00 37512
STB 10.00 5.00 51.00 37515
5.00
SD 16.00 5.00 64.00 37519
STB 10.00 6.00 50.00 37523
6.00 SD 20.00 6.00 64.00 37531
SD 20.00 6.00 76.00 37533
STB 12.00 8.00 50.00 37558
8.00 SD 22.00 8.00 64.00 37566
SD 22.00 8.00 76.00 37568
STB 12.00 10.00 50.00 37591
10.00 SD 25.00 10.00 64.00 37597
SD 25.00 10.00 89.00 37599
STB 16.00 12.00 63.00 37612
12.00 SD 25.00 12.00 76.00 37619
SD 25.00 12.00 100.00 37621
STB 20.00 16.00 89.00 37675
16.00
SD 38.00 16.00 100.00 37682
SD 38.00 20.00 100.00 37718
20.00
SD 63.00 20.00 125.00 37725
25.00 SD 38.00 25.00 100.00 37732

I M

IMPERIAL METRIC

■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ General Purpose
