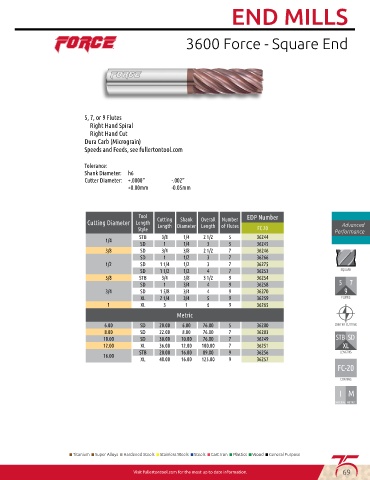

Page 71 - 75th-Online-Anniversary-Catalog

END MILLS

3600 Force - Square End

5, 7, or 9 Flutes
Right Hand Spiral
Right Hand Cut
Dura Carb (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.002”
+0.00mm -0.05mm

Tool EDP Number
Cutting Diameter Length Cutting Shank Overall Number Advanced
Length Diameter Length
of Flutes
Style FC 20 Performance
STB 3/8 1/4 2 1/2 5 36244
1/4
SD 1 1/4 3 5 36245
3/8 SD 3/4 3/8 2 1/2 7 36246
SD 1 1/2 3 7 36266
1/2 SD 1 1/4 1/2 3 7 36275
SD 1 1/2 1/2 4 7 36253
5/8 STB 3/4 5/8 3 1/2 9 36254
SD 1 3/4 4 9 36258
3/4 SD 1 5/8 3/4 4 9 36270
XL 2 1/4 3/4 5 9 36259
1 XL 3 1 6 9 36265
Metric
6.00 SD 20.00 6.00 76.00 5 36280
8.00 SD 22.00 8.00 76.00 7 36283
10.00 SD 30.00 10.00 76.00 7 36249
12.00 XL 36.00 12.00 100.00 7 36251
STB 20.00 16.00 89.00 9 36256
16.00
XL 48.00 16.00 125.00 9 36257

I M

IMPERIAL METRIC

■ Titanium ■ Super Alloys ■ Hardened Steels ■ Stainless Steels ■ Steels ■ Cast Iron ■ Plastics ■ Wood ■ General Purpose

Visit fullertontool.com for the most up to date information. 69
