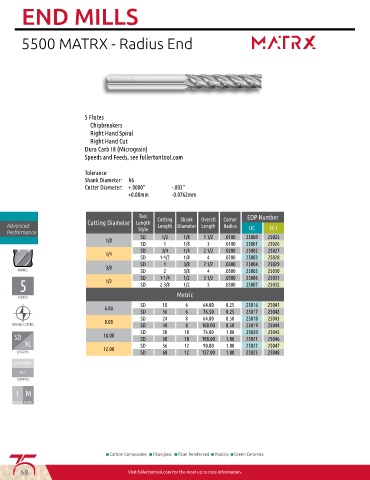

END MILLS

5500 MATRX - Radius End

5 Flutes
Chipbreakers
Right Hand Spiral
Right Hand Cut
Dura Carb III (Micrograin)
Speeds and Feeds, see fullertontool.com

Tolerance:
Shank Diameter: h6
Cutter Diameter: +.0000” -.003”
+0.00mm -0.0762mm

Tool EDP Number
Cutting Diameter Length Cutting Shank Overall Corner
Advanced Length Diameter Length Radius UC FC 1
Performance Style
1/8 SD 1/2 1/8 1 1/2 .0100 25000 25025
SD 1 1/8 3 .0100 25001 25026
SD 3/4 1/4 2 1/2 .0200 25002 25027
1/4
SD 1-1/2 1/4 4 .0200 25003 25028
SD 1 3/8 2 1/2 .0300 25004 25029
3/8
SD 2 3/8 4 .0300 25005 25030
SD 1-1/4 1/2 3 1/2 .0300 25006 25031
1/2
SD 2-3/8 1/2 5 .0300 25007 25032
Metric
SD 18 6 64.00 0.25 25016 25041
6.00
SD 36 6 76.50 0.25 25017 25042
SD 24 8 64.00 0.50 25018 25043
8.00
SD 48 8 100.00 0.50 25019 25044
SD 30 10 76.00 1.00 25020 25045
10.00
SD 60 10 100.00 1.00 25021 25046
SD 36 12 90.00 1.00 25022 25047
12.00
SD 60 12 127.00 1.00 25023 25048
UNCOATED
FC-1

I M

IMPERIAL METRIC

■ Carbon Composites ■ Fiberglass ■ Fiber Reinforced ■ Plastics ■ Green Ceramics

68 Visit fullertontool.com for the most up to date information.
