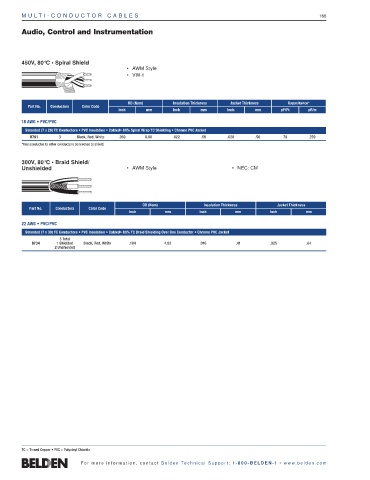

Page 166 - belden

MUL T I - COND UC T O R C A BL E S 166

Audio, Control and Instrumentation

450V, 80°C • Spiral Shield
• AWM Style
• VW-1

OD (Nom) Insulation Thickness Jacket Thickness Capacitance*
Part No. Conductors Color Code
Inch mm Inch mm Inch mm pF/Ft pF/m
18 AWG • PVC/PVC
Stranded (7 x 26) TC Conductors • PVC Insulation • Cabled• 80% Spiral Wrap TC Shielding • Chrome PVC Jacket
8791 3 Black, Red, White .260 6.60 .022 .56 .028 .56 79 259
*One conductor to other conductors connected to shield.

300V, 80°C • Braid Shield/
Unshielded • AWM Style • NEC: CM

OD (Nom) Insulation Thickness Jacket Thickness
Part No. Conductors Color Code
Inch mm Inch mm Inch mm
22 AWG • PVC/PVC
Stranded (7 x 30) TC Conductors • PVC Insulation • Cabled• 80% TC Braid Shielding Over One Conductor • Chrome PVC Jacket
3 Total
8734 1 Shielded Black, Red, White .194 4.93 .016 .41 .025 .64
2 Unshielded

TC = Tinned Copper • PVC = Polyvinyl Chloride
