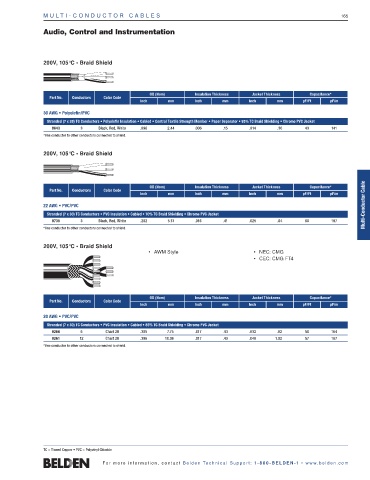

MUL T I - COND UC T O R C A BL E S 165

Audio, Control and Instrumentation

200V, 105°C • Braid Shield

OD (Nom) Insulation Thickness Jacket Thickness Capacitance*
Part No. Conductors Color Code
Inch mm Inch mm Inch mm pF/Ft pF/m
30 AWG • Polyolefin/PVC
Stranded (7 x 38) TC Conductors • Polyolefin Insulation • Cabled • Central Textile Strength Member • Paper Separator • 95% TC Braid Shielding • Chrome PVC Jacket
8643 3 Black, Red, White .096 2.44 .006 .15 .014 .36 43 141
*One conductor to other conductors connected to shield.

200V, 105°C • Braid Shield

Multi-Conductor Cable
OD (Nom) Insulation Thickness Jacket Thickness Capacitance*
Part No. Conductors Color Code
Inch mm Inch mm Inch mm pF/Ft pF/m
22 AWG • PVC/PVC
Stranded (7 x 30) TC Conductors • PVC Insulation • Cabled • 70% TC Braid Shielding • Chrome PVC Jacket
8735 3 Black, Red, White .202 5.13 .016 .41 .025 .64 60 197
*One conductor to other conductors connected to shield.

200V, 105°C • Braid Shield
• AWM Style • NEC: CMG
• CEC: CMG FT4

OD (Nom) Insulation Thickness Jacket Thickness Capacitance*
Part No. Conductors Color Code
Inch mm Inch mm Inch mm pF/Ft pF/m
20 AWG • PVC/PVC
Stranded (7 x 30) TC Conductors • PVC Insulation • Cabled • 85% TC Braid Shielding • Chrome PVC Jacket
9260 6 Chart 2R .305 7.75 .017 .43 .032 .82 50 164
9261 12 Chart 2R .396 10.06 .017 .43 .040 1.02 57 187
*One conductor to other conductors connected to shield.

TC = Tinned Copper • PVC = Polyvinyl Chloride
