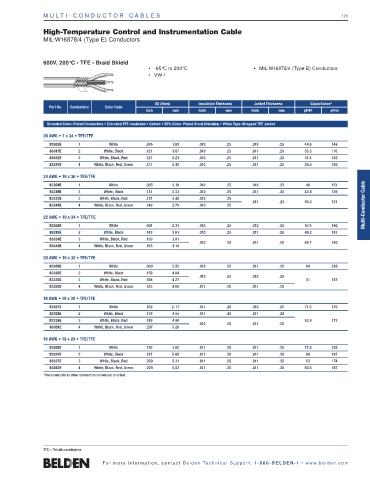

MUL T I - COND UC T O R C A BL E S 171

High-Temperature Control and Instrumentation Cable
MIL-W16878/4 (Type E) Conductors

600V, 200°C • TFE • Braid Shield
• -65°C to 200°C • MIL-W16878/4 (Type E) Conductors
• VW-1

OD (Nom) Insulation Thickness Jacket Thickness Capacitance*
Part No. Conductors Color Code
Inch mm Inch mm Inch mm pF/Ft pF/m
Stranded Silver-Plated Conductors • Extruded TFE Insulation • Cabled • 85% Silver-Plated Braid Shielding • White Tape-Wrapped TFE Jacket

26 AWG • 7 x 34 • TFE/TFE
83303E 1 White .076 1.93 .010 .25 .010 .25 44.6 146
83317E 2 White, Black .121 3.07 .010 .25 .011 .28 35.5 116
83332E 3 White, Black, Red .127 3.23 .010 .25 .011 .28 31.5 103
83347E 4 White, Black, Red, Green .137 3.48 .010 .25 .011 .28 30.5 100
24 AWG • 19 x 36 • TFE/TFE
83304E 1 White .085 2.16 .010 .25 .010 .25 46 151
83318E 2 White, Black .131 3.33 .010 .25 .011 .28 42.4 139
83333E 3 White, Black, Red .137 3.48 .010 .25
.011 .28 36.8 121
83348E 4 White, Black, Red, Green .149 3.79 .010 .25 Multi-Conductor Cable
22 AWG • 19 x 34 • TFE/TFE
83305E 1 White .091 2.31 .010 .25 .010 .25 57.9 190
83319E 2 White, Black .143 3.63 .010 .25 .011 .28 49.2 161
83334E 3 White, Black, Red .150 3.81
.010 .25 .011 .28 45.7 150
83349E 4 White, Black, Red, Green .163 4.14
20 AWG • 19 x 32 • TFE/TFE
83306E 1 White .099 2.52 .010 .25 .011 .25 69 226
83320E 2 White, Black .159 4.04
.010 .25 .010 .28
83335E 3 White, Black, Red .168 4.27 51 167
83350E 4 White, Black, Red, Green .183 4.65 .011 .28 .011 .25
18 AWG • 19 x 30 • TFE/TFE
83307E 1 White .109 2. 77 .011 .28 .010 .25 71.5 135
83321E 2 White, Black .179 4.55 .011 .28 .011 .28
83336E 3 White, Black, Red .189 4.80 52.8 173
.010 .25 .011 .28
83351E 4 White, Black, Red, Green .207 5.26
16 AWG • 19 x 29 • TFE/TFE
83308E 1 White .120 3.05 .011 .28 .011 .28 72.5 238
83322E 2 White, Black .197 5.00 .011 .28 .011 .28 60 197
83337E 3 White, Black, Red .209 5.31 .011 .28 .011 .28 53 174
83352E 4 White, Black, Red, Green .229 5.82 .011 .28 .011 .28 50.8 167
*One conductor to other conductors connected to shield.

TFE = Tetrafluoroethylene
