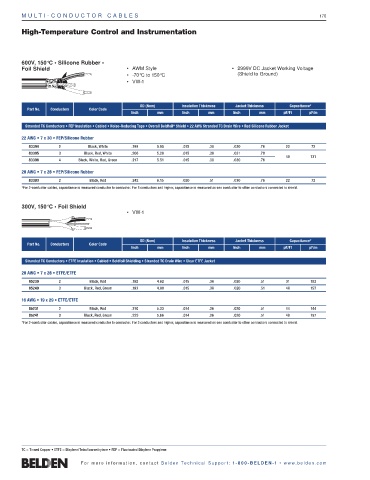

MUL T I - COND UC T O R C A BL E S 170

High-Temperature Control and Instrumentation

600V, 150°C • Silicone Rubber •
Foil Shield • AWM Style • 2999V DC Jacket Working Voltage
• -70°C to 150°C (Shield to Ground)
• VW-1

OD (Nom) Insulation Thickness Jacket Thickness Capacitance*
Part No. Conductors Color Code
Inch mm Inch mm Inch mm pF/Ft pF/m
Stranded TC Conductors • FEP Insulation • Cabled • Noise-Reducing Tape • Overall Beldfoil ® Shield • 22 AWG Stranded TC Drain Wire • Red Silicone Rubber Jacket
22 AWG • 7 x 30 • FEP/Silicone Rubber
83394 2 Black, White .199 5.05 .015 .38 .030 .76 22 72
83395 3 Black, Red, White .208 5.28 .015 .38 .031 .79
40 131
83396 4 Black, White, Red, Green .217 5.51 .015 .38 .030 .76
20 AWG • 7 x 28 • FEP/Silicone Rubber
83393 2 Black, Red .242 6.15 .020 .51 .030 .76 22 72
*For 2-conductor cables, capacitance is measured conductor to conductor. For 3 conductors and higher, capacitance is measured as one conductor to other conductors connected to shield.

300V, 150°C • Foil Shield
• VW-1

OD (Nom) Insulation Thickness Jacket Thickness Capacitance*
Part No. Conductors Color Code
Inch mm Inch mm Inch mm pF/Ft pF/m

Stranded TC Conductors • ETFE Insulation • Cabled • Beldfoil Shielding • Stranded TC Drain Wire • Clear ETFE Jacket
20 AWG • 7 x 28 • ETFE/ETFE
85230 2 Black, Red .182 4.62 .015 .38 .020 .51 31 102
85240 3 Black, Red, Green .193 4.90 .015 .38 .020 .51 48 157

16 AWG • 19 x 29 • ETFE/ETFE
85231 2 Black, Red .210 5.33 .014 .36 .020 .51 44 144
85241 3 Black, Red, Green .223 5.66 .014 .36 .020 .51 48 157
*For 2-conductor cables, capacitance is measured conductor to conductor. For 3 conductors and higher, capacitance is measured as one conductor to other conductors connected to shield.

TC = Tinned Copper • ETFE = Ethylene/Tetrafluoroethylene • FEP = Fluorinated Ethylene Propylene

Fo r m o r e i n fo r m at i o n, c o n t a c t Be ld e n Te ch n i ca l S u ppo r t : 1- 8 0 0 - B E L D E N -1 • www. b e l d e n . c o m
