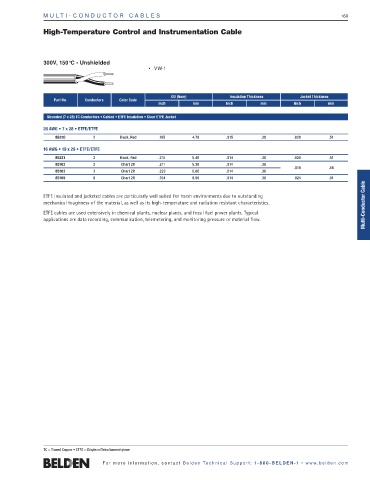

Page 169 - belden

MUL T I - COND UC T O R C A BL E S 169

High-Temperature Control and Instrumentation Cable

300V, 150°C • Unshielded
• VW-1

OD (Nom) Insulation Thickness Jacket Thickness
Part No. Conductors Color Code
Inch mm Inch mm Inch mm
Stranded (7 x 28) TC Conductors • Cabled • ETFE Insulation • Clear ETFE Jacket
20 AWG • 7 x 28 • ETFE/ETFE
85220 2 Black, Red .185 4.70 .015 .38 .020 .51
16 AWG • 19 x 29 • ETFE/ETFE
85221 2 Black, Red .215 5.46 .014 .36 .020 .51
85102 2 Chart 2R .211 5.36 .014 .36
.019 .48
85103 3 Chart 2R .223 5.66 .014 .36
85109 9 Chart 2R .354 8.99 .014 .36 .024 .61
Multi-Conductor Cable
ETFE insulated and jacketed cables are particularly well suited for harsh environments due to outstanding
mechanical toughness of the material, as well as its high-temperature and radiation resistant characteristics.

ETFE cables are used extensively in chemical plants, nuclear plants, and fossil fuel power plants. Typical
applications are data recording, communication, telemetering, and monitoring pressure or material flow.

TC = Tinned Copper • ETFE = Ethylene/Tetrafluoroethylene
