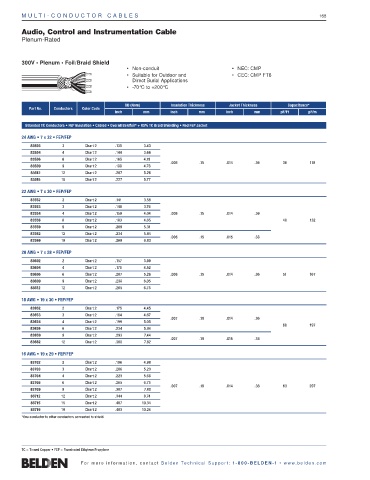

MUL T I - COND UC T O R C A BL E S 168

Audio, Control and Instrumentation Cable
Plenum-Rated

300V • Plenum • Foil/Braid Shield
• Non-conduit • NEC: CMP
• Suitable for Outdoor and • CEC: CMP FT6
Direct Burial Applications
• -70°C to +200°C

OD (Nom) Insulation Thickness Jacket Thickness Capacitance*
Part No. Conductors Color Code
Inch mm Inch mm Inch mm pF/Ft pF/m

Stranded TC Conductors • FEP Insulation • Cabled • Overall Beldfoil ® + 85% TC Braid Shielding • Red FEP Jacket
24 AWG • 7 x 32 • FEP/FEP
83503 3 Chart 2 .135 3.43
83504 4 Chart 2 .144 3.66
83506 6 Chart 2 .165 4.19
.006 .15 .014 .36 36 118
83509 9 Chart 2 .188 4.78
83512 12 Chart 2 .207 5.26
83515 15 Chart 2 .227 5.77
22 AWG • 7 x 30 • FEP/FEP
83552 2 Chart 2 .141 3.58
83553 3 Chart 2 .148 3.76
83554 4 Chart 2 .159 4.04 .006 .15 .014 .36
83556 6 Chart 2 .183 4.65 40 132
83559 9 Chart 2 .209 5.31
83562 12 Chart 2 .234 5.94
.006 .15 .015 .38
83569 19 Chart 2 .269 6.83
20 AWG • 7 x 28 • FEP/FEP
83602 2 Chart 2 .157 3.99
83604 4 Chart 2 .178 4.52
83606 6 Chart 2 .207 5.26 .006 .15 .014 .36 51 167
83609 9 Chart 2 .238 6.05
83612 12 Chart 2 .265 6.73

18 AWG • 19 x 30 • FEP/FEP
83652 2 Chart 2 .175 4.45
83653 3 Chart 2 .184 4.67
.007 .18 .014 .36
83654 4 Chart 2 .199 5.05
60 197
83656 6 Chart 2 .234 5.94
83659 9 Chart 2 .293 7.44
.007 .18 .015 .38
83662 12 Chart 2 .308 7.82
16 AWG • 19 x 29 • FEP/FEP
83702 2 Chart 2 .196 4.98
83703 3 Chart 2 .206 5.23
83704 4 Chart 2 .223 5.66
83706 6 Chart 2 .265 6.73
.007 .18 .014 .36 63 207
83709 9 Chart 2 .307 7.80
83712 12 Chart 2 .344 8.74
83715 15 Chart 2 .407 10.34
83719 19 Chart 2 .403 10.24
*One conductor to other conductors connected to shield.

TC = Tinned Copper • FEP = Fluorinated Ethylene Propylene
