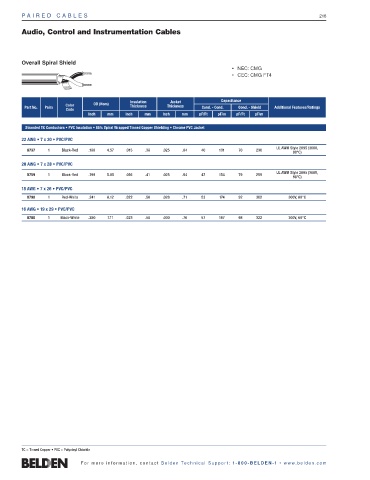

PA I R E D C A B L E S 216

Audio, Control and Instrumentation Cables

Overall Spiral Shield
• NEC: CMG
• CEC: CMG FT4

Insulation Jacket Capacitance
Color OD (Nom)
Part No. Pairs Thickness Thickness Cond. - Cond. Cond. - Shield Additional Features/Ratings
Code
Inch mm Inch mm Inch mm pF/Ft pF/m pF/Ft pF/m
Stranded TC Conductors • PVC Insulation • 85% Spiral Wrapped Tinned Copper Shielding • Chrome PVC Jacket
22 AWG • 7 x 30 • PVC/PVC
UL AWM Style 2095 (300V,
8737 1 Black-Red .180 4.57 .015 .38 .025 .64 40 131 70 230
80°C)
20 AWG • 7 x 28 • PVC/PVC
UL AWM Style 2095 (300V,
8759 1 Black-Red .199 5.05 .016 .41 .025 .64 47 154 79 259
80°C)
18 AWG • 7 x 26 • PVC/PVC
8790 1 Red-White .241 6.12 .022 .56 .028 .71 53 174 92 302 300V, 60°C

16 AWG • 19 x 29 • PVC/PVC
8780 1 Black-White .280 7.11 .023 .58 .030 .76 57 187 98 322 300V, 60°C

TC = Tinned Copper • PVC = Polyvinyl Chloride
