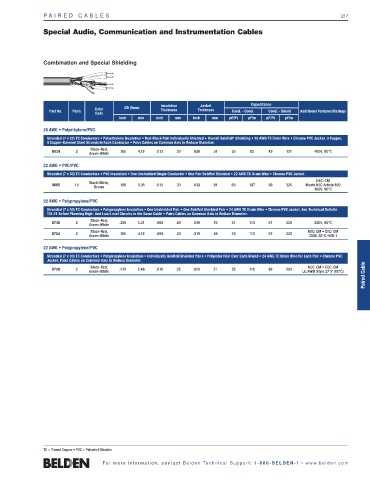

PA I R E D C A B L E S 217

Special Audio, Communication and Instrumentation Cables

Combination and Special Shielding

Insulation Jacket Capacitance
Color OD (Nom)
Part No. Pairs Thickness Thickness Cond. - Cond. Cond. - Shield Additional Features/Ratings
Code
Inch mm Inch mm Inch mm pF/Ft pF/m pF/Ft pF/m
25 AWG • Polyethylene/PVC
Stranded (7 x 32) TC Conductors • Polyethylene Insulation • Red-Black Pair Individually Shielded + Overall Beldfoil ® Shielding • 25 AWG TC Drain Wire • Chrome PVC Jacket. 3 Copper,
4 Copper-Covered Steel Strands in Each Conductor • Pairs Cables on Common Axis to Reduce Diameter.
Black-Red,
8434 2 .165 4.19 .013 .33 .020 .51 25 82 49 131 400V, 80°C
Green-White
22 AWG • PVC/PVC
Stranded (7 x 30) TC Conductors • PVC Insulation • One Unshielded Single Conductor • One Pair Beldfoil Shielded • 22 AWG TC Drain Wire • Chrome PVC Jacket
NEC: CM
Black-White,
9685 1.5 .199 5.05 .013 .33 .032 .81 60 197 99 325 Meets NEC Article 800
Brown
300V, 80°C
22 AWG • Polypropylene/PVC
Stranded (7 x 30) TC Conductors • Polypropylene Insulation • One Unshielded Pair • One Beldfoil Shielded Pair • 24 AWG TC Drain Wire • Chrome PVC Jacket. See Technical Bulletin
T/8-21 Before Planning High- And Low-Level Circuits in the Same Cable • Pairs Cables on Common Axis to Reduce Diameter.
Black-Red,
8730 2 .205 5.21 .008 .20 .030 .76 34 113 67 220 200V, 80°C
Green-White
Black-Red, NEC: CM • CEC: CM
8724 2 .185 4.19 .008 .20 .019 .48 34 113 67 220
Green-White 300V, 80°C •VW-1
22 AWG • Polypropylene/PVC
Stranded (7 x 30) TC Conductors • Polypropylene Insulation • Individually Beldfoil Shielded Pairs • Polyester Film Over Each Shield • 24 AWG TC Drain Wire for Each Pair • Chrome PVC
Jacket. Pairs Cables on Common Axis to Reduce Diameter.
Paired Cable
Black-Red, NEC: CM • CEC: CM
8728 2 .215 5.46 .010 .25 .028 .71 35 115 62 203
Green-White UL AWM Style 2717 (80°C)

TC = Tinned Copper • PVC = Polyvinyl Chloride
