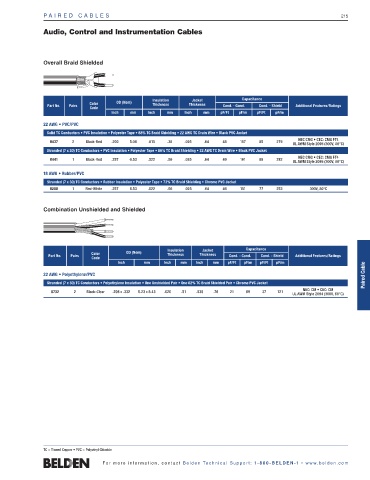

PA I R E D C A B L E S 215

Audio, Control and Instrumentation Cables

Overall Braid Shielded

Insulation Jacket Capacitance
Color OD (Nom)
Part No. Pairs Thickness Thickness Cond. - Cond. Cond. - Shield Additional Features/Ratings
Code
Inch mm Inch mm Inch mm pF/Ft pF/m pF/Ft pF/m
22 AWG • PVC/PVC
Solid TC Conductors • PVC Insulation • Polyester Tape • 88% TC Braid Shielding • 22 AWG TC Drain Wire • Black PVC Jacket
NEC CMG • CEC: CMG FT4
8437 2 Black-Red .200 5.08 .015 .38 .025 .64 48 157 85 279
UL AWM Style 2095 (300V, 80°C)
Stranded (7 x 30) TC Conductors • PVC Insulation • Polyester Tape • 86% TC Braid Shielding • 22 AWG TC Drain Wire • Black PVC Jacket
NEC CMG • CEC: CMG FT4
8441 1 Black-Red .257 6.53 .022 .56 .025 .64 49 161 86 282
UL AWM Style 2095 (300V, 80°C)
18 AWG • Rubber/PVC
Stranded (7 x 30) TC Conductors • Rubber Insulation • Polyester Tape • 73% TC Braid Shielding • Chrome PVC Jacket
8208 1 Red-White .257 6.53 .022 .56 .025 .64 46 151 77 253 300V, 80°C

Combination Unshielded and Shielded

Insulation Jacket Capacitance
Color OD (Nom) Thickness Thickness
Part No. Pairs Cond. - Cond. Cond. - Shield Additional Features/Ratings
Code
Inch mm Inch mm Inch mm pF/Ft pF/m pF/Ft pF/m
Paired Cable
22 AWG • Polyethylene/PVC
Stranded (7 x 30) TC Conductors • Polyethylene Insulation • One Unshielded Pair • One 62% TC Braid Shielded Pair • Chrome PVC Jacket
NEC: CM • CEC: CM
8732 2 Black-Clear .206 x .332 5.23 x 8.43 .020 .51 .030 .76 21 69 37 121
UL AWM Style 2094 (300V, 60°C)

TC = Tinned Copper • PVC = Polyvinyl Chloride
