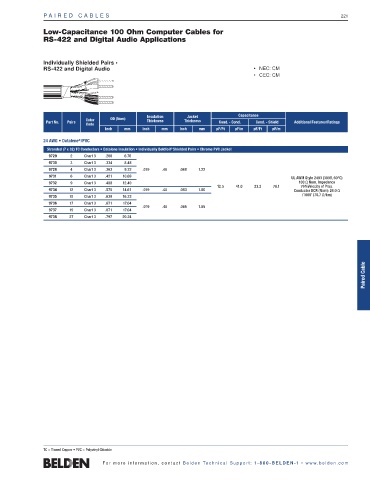

PA I R E D C A B L E S 221

Low-Capacitance 100 Ohm Computer Cables for
RS-422 and Digital Audio Applications

Individually Shielded Pairs •
RS-422 and Digital Audio • NEC: CM
• CEC: CM

Insulation Jacket Capacitance
Color OD (Nom)
Part No. Pairs Thickness Thickness Cond. - Cond. Cond. - Shield Additional Features/Ratings
Code
Inch mm Inch mm Inch mm pF/Ft pF/m pF/Ft pF/m
24 AWG • Datalene /PVC
®
Stranded (7 x 32) TC Conductors • Datalene Insulation • Individually Beldfoil ® Shielded Pairs • Chrome PVC Jacket
9729 2 Chart 3 .266 6.76
9730 3 Chart 3 .334 8.48
9728 4 Chart 3 .363 9.22 .019 .48 .048 1.22
9731 6 Chart 3 .421 10.69
UL AWM Style 2493 (300V, 60°C)
9732 9 Chart 3 .488 12.40 100 Ω Nom. Impedance
12.5 41.0 23.2 76.1 76%Velocity of Prop.
9734 12 Chart 3 .575 14.61 .019 .48 .063 1.60 Conductor DCR (Nom): 24.0 Ω
/1000’ (78.7 Ω/km)
9735 15 Chart 3 .639 16.23
9736 17 Chart 3 .671 17.04
.019 .48 .065 1.65
9737 19 Chart 3 .671 17.04
9738 27 Chart 3 .797 20.24

Paired Cable

TC = Tinned Copper • PVC = Polyvinyl Chloride
