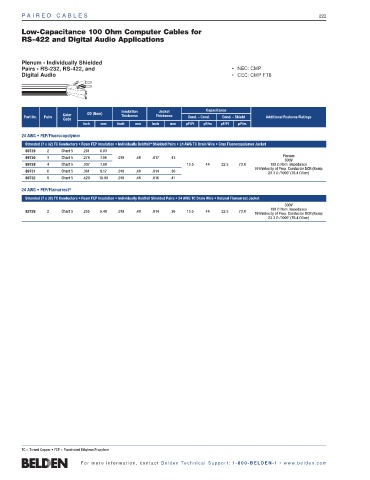

PA I R E D C A B L E S 222

Low-Capacitance 100 Ohm Computer Cables for
RS-422 and Digital Audio Applications

Plenum • Individually Shielded
Pairs • RS-232, RS-422, and • NEC: CMP
Digital Audio • CEC: CMP FT6

Insulation Jacket Capacitance
Color OD (Nom) Thickness Thickness
Part No. Pairs Cond. - Cond. Cond. - Shield Additional Features/Ratings
Code
Inch mm Inch mm Inch mm pF/Ft pF/m pF/Ft pF/m
24 AWG • FEP/Fluorocopolymer
Stranded (7 x 32) TC Conductors • Foam FEP Insulation • Individually Beldfoil ® Shielded Pairs • 24 AWG TC Drain Wire • Gray Fluorocopolymer Jacket
89729 2 Chart 5 .261 6.63
Plenum
89730 3 Chart 5 .278 7.06 .019 .48 .017 .43
300V
89728 4 Chart 5 .307 7.80 13.5 44 22.5 73.8 100 Ω Nom. Impedance
76%Velocity of Prop. Conductor DCR (Nom):
89731 6 Chart 5 .361 9.17 .019 .48 .014 .36 23.3 Ω /1000’ (76.4 Ω/km)
89732 9 Chart 5 .429 10.90 .019 .48 .016 .41
24 AWG • FEP/Flamarrest ®
Stranded (7 x 32) TC Conductors • Foam FEP Insulation • Individually Beldfoil Shielded Pairs • 24 AWG TC Drain Wire • Natural Flamarrest Jacket
300V
100 Ω Nom. Impedance
82729 2 Chart 5 .255 6.48 .019 .48 .014 .36 13.5 44 22.5 73.8
76%Velocity of Prop. Conductor DCR (Nom):
23.3 Ω /1000’ (76.4 Ω/km)

TC = Tinned Copper • FEP = Fluorinated Ethylene Propylene
