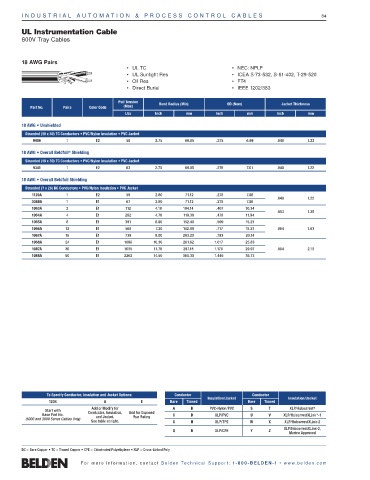

I N DUS T R I A L A U T O M A TI O N & P R O C E S S C O NTRO L C A B L E S 84

UL Instrumentation Cable
600V Tray Cables

18 AWG Pairs
• UL TC • NEC: NPLF
• UL Sunlight Res • ICEA S-73-532, S-61-402, T-29-520
• Oil Res • FT4
• Direct Burial • IEEE 1202/383

Pull Tension Bend Radius (Min) OD (Nom) Jacket Thickness
Part No. Pairs Color Code (Max)
Lbs Inch mm Inch mm Inch mm

18 AWG • Unshielded
Stranded (19 x 30) TC Conductors • PVC/Nylon Insulation • PVC Jacket
9486 1 E2 50 2.75 69.85 .275 6.99 .048 1.22
®
18 AWG • Overall Beldfoil Shielding
Stranded (19 x 30) TC Conductors • PVC/Nylon Insulation • PVC Jacket
9341 1 E2 63 2.75 69.85 .276 7.01 .048 1.22

18 AWG • Overall Beldfoil Shielding
Stranded (7 x 26) BC Conductors • PVC/Nylon Insulation • PVC Jacket
1120A 1 E2 59 2.80 71.12 .278 7.06
.048 1.22
3088A 1 E1 67 2.80 71.12 .278 7.06
1063A 2 E1 112 4.10 104.14 .407 10.34
.053 1.35
1064A 4 E1 202 4.70 119.38 .470 11.94
1065A 8 E1 381 6.00 152.40 .599 15.21
1066A 12 E1 560 7.20 182.88 .717 18.21 .064 1.63
1067A 16 E1 739 8.00 203.20 .793 20.14
1068A 24 E1 1098 10.30 261.62 1.017 25.83
1087A 36 E1 1635 11.70 297.18 1.178 29.97 .084 2.13
1088A 50 E1 2262 14.50 368.30 1.446 36.73

To Specify Conductor, Insulation and Jacket Options: Conductor Conductor
Insulation/Jacket Insulation/Jacket
1234 A E Bare Tinned Bare Tinned
Add or Modify for A B PVC-Nylon/PVC S T XLP/Haloarrest ®
Start with Conductor, Insulation, Add for Exposed
Base Part No. and Jacket. Run Rating C D XLP/PVC U V XLP/HaloarrestXLink ™ -1
(1000 and 3000 Series Cables Only)
See table at right. G H XLP/TPE W X XLP/HaloarrestXLink-2
XLP/HaloarrestXLink-2,
Q R XLP/CPE Y Z
Marine Approved
BC = Bare Copper • TC = Tinned Copper • CPE = Chlorinated Polyethylene • XLP = Cross-Linked Poly

Fo r m o r e i n fo r m at i o n, c o n t a c t Be ld e n Te ch n i ca l S u ppo r t : 1- 8 0 0 - B E L D E N -1 • www. b e l d e n . c o m
