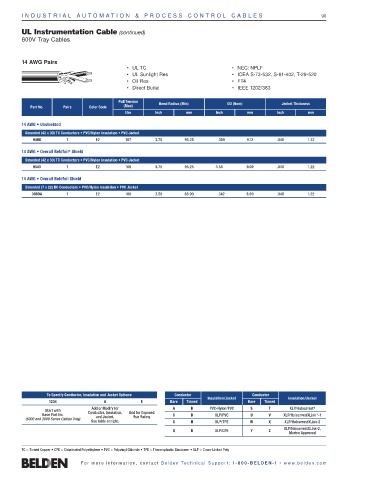

UL Instrumentation Cable (continued)
600V Tray Cables

14 AWG Pairs
• UL TC • NEC: NPLF
• UL Sunlight Res • ICEA S-73-532, S-61-402, T-29-520
• Oil Res • FT4
• Direct Burial • IEEE 1202/383

Pull Tension Bend Radius (Min) OD (Nom) Jacket Thickness
Part No. Pairs Color Code (Max)
Lbs Inch mm Inch mm Inch mm
14 AWG • Unshielded
Stranded (42 x 30) TC Conductors • PVC/Nylon Insulation • PVC Jacket
9488 1 E2 107 3.75 95.25 .359 9.12 .048 1.22

14 AWG • Overall Beldfoil Shield
®
Stranded (42 x 30) TC Conductors • PVC/Nylon Insulation • PVC Jacket
9343 1 E2 160 3.75 95.25 3.58 9.09 .048 1.22
14 AWG • Overall Beldfoil Shield
Stranded (7 x 22) BC Conductors • PVC/Nylon Insulation • PVC Jacket
3080A 1 E2 160 3.50 88.90 .342 8.69 .048 1.22

To Specify Conductor, Insulation and Jacket Options: Conductor Conductor
Insulation/Jacket Insulation/Jacket
1234 A E Bare Tinned Bare Tinned
Add or Modify for A B PVC-Nylon/PVC S T XLP/Haloarrest ®
Start with Conductor, Insulation, Add for Exposed
Base Part No. and Jacket. Run Rating C D XLP/PVC U V XLP/HaloarrestXLink ™ -1
(1000 and 3000 Series Cables Only)
See table at right. G H XLP/TPE W X XLP/HaloarrestXLink-2
XLP/HaloarrestXLink-2,
Q R XLP/CPE Y Z
Marine Approved
TC = Tinned Copper • CPE = Chlorinated Polyethylene • PVC = Polyvinyl Chloride • TPE = Thermoplastic Elastomer • XLP = Cross-Linked Poly
