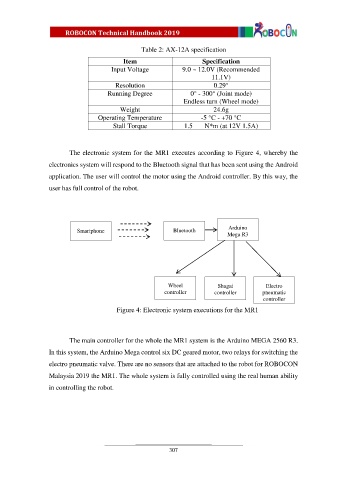

Table 2: AX-12A specification

Item Specification
Input Voltage 9.0 ~ 12.0V (Recommended
11.1V)
Resolution 0.29°
Running Degree 0° - 300° (Joint mode)
Endless turn (Wheel mode)
Weight 24.6g
Operating Temperature -5 °C - +70 °C
Stall Torque 1.5 N*m (at 12V 1.5A)

The electronic system for the MR1 executes according to Figure 4, whereby the
electronics system will respond to the Bluetooth signal that has been sent using the Android

application. The user will control the motor using the Android controller. By this way, the
user has full control of the robot.

Smartphone Bluetooth Arduino
Mega R3

Wheel Shagai Electro
controller controller pneumatic
controller
Figure 4: Electronic system executions for the MR1

The main controller for the whole the MR1 system is the Arduino MEGA 2560 R3.
In this system, the Arduino Mega control six DC geared motor, two relays for switching the

electro pneumatic valve. There are no sensors that are attached to the robot for ROBOCON

Malaysia 2019 the MR1. The whole system is fully controlled using the real human ability
in controlling the robot.
