SECTION 7.0 – LANDSCAPE AND TURFING SECTION 8.0 – RECREATIONAL FACILITIES

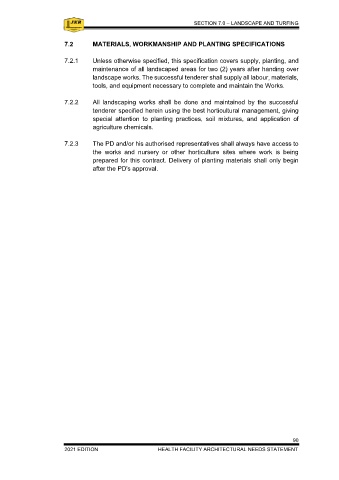

7.2 MATERIALS, WORKMANSHIP AND PLANTING SPECIFICATIONS SECTION 8.0: RECREATIONAL FACILITIES
7.2.1 Unless otherwise specified, this specification covers supply, planting, and
maintenance of all landscaped areas for two (2) years after handing over 8.1 GENERAL
landscape works. The successful tenderer shall supply all labour, materials,
tools, and equipment necessary to complete and maintain the Works. 8.1.1 This section shall be read in conjunction with the Project Brief.
7.2.2 All landscaping works shall be done and maintained by the successful 8.1.2 The dimensions and finishes of the game facilities shall comply with the
tenderer specified herein using the best horticultural management, giving requirements of the Garis Panduan dan Peraturan bagi Perancangan
special attention to planting practices, soil mixtures, and application of Bangunan by Jawatankuasa Standard dan Kos, Unit Perancang Ekonomi
agriculture chemicals. (EPU), Jabatan Perdana Menteri, Malaysia.
7.2.3 The PD and/or his authorised representatives shall always have access to 8.1.3 All recreational facilities design shall consider safety, security, noise,
the works and nursery or other horticulture sites where work is being central location, orientation, vehicle density, and air pollution. The
prepared for this contract. Delivery of planting materials shall only begin orientation of the outdoor game facilities shall minimize facing the morning
after the PD's approval. and evening sun.
8.1.4 All game court surfaces are to be finished with endorsed and recommended
surfacing systems with excellent shock absorption, elasticity, flexibility,
strong protective membrane, waterproof, non-toxic, resilience, and slip
resistance. All sports facilities and courts shall comply with international
standards and be approved by the respective sports council.
8.1.5 Children playground facilities:
Children's indoor and outdoor play structures shall be constructed of sturdy,
durable, UV stabilized plastic polymers and galvanized steel/aluminium
posts with non-toxic coatings, suitable for prolonged outdoor exposure.
a) Stainless steel hardware is to be used. Decks are to be of non-slip
surfaces.
b) All swings are to be provided with PVC coated galvanized swing chains
and slash-proof rubber seats.
c) All play structures and independent play events are to be of visually
stimulating bright primary colours.
d) All playgrounds shall have fall-absorbing surfaces to help protect against
injuries due to falls. These surfaces provided shall be continuous and
link all the play equipment together.
e) The proposed playgrounds shall not be vandalism prone.
f) The playgrounds shall have green fields to promote activities in nature
to the children.
g) The universal design aspect of facilities must not be compromised.
90 91
