3. Discuss and interpret the following characteristics of waves in both the graphs:
(a) Amplitude, A
(b) Period, T
(c) Frequency, f
(d) Wavelength, λ
(e) Wave speed, v

Determining Wavelength, λ, Frequency, f and Wave Video demonstrating the
Speed, v use of a ripple tank
A ripple tank is used in the laboratory to study water waves.
It consists of a water tank made from perspex or glass, ripple
generator, digital xenon stroboscope, mirror, glass screen
and dipper.
http://bt.sasbadi.com/p4182

Back view of a ripple tank Side view of a ripple tank

Digital xenonigital x
D n
strobos
stroboscope
Ripple generator
Dipper

Water tank

Glass screen
Mirror
Power source
and control unit

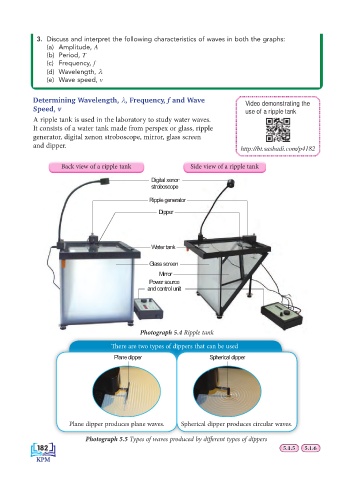

Photograph 5.4 Ripple tank
Th ere are two types of dippers that can be used
Plane dipper Spherical dipper

Plane dipper produces plane waves. Spherical dipper produces circular waves.

Photograph 5.5 Types of waves produced by diff erent types of dippers
