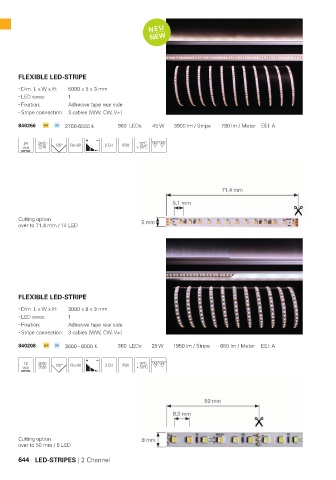

FLEXIBLE LED-STRIPE
Dim. L x W x H: 5000 x 5 x 3 mm
LED rows: 1
Fixation: Adhesive tape rear side
Stripe connection: 3 cables [WW, CW, V+]
840266 2700-6500 K 980 LEDs 45 W 3900 lm / Stripe 780 lm / Meter EEI: A
24 SMD 120° Ra>90 2 CH IP20 - 15°C M M
2216 + 50°C
Cutting option
over to 71,4 mm / 14 LED
FLEXIBLE LED-STRIPE
Dim. L x W x H: 3000 x 8 x 3 mm
LED rows: 1
Fixation: Adhesive tape rear side
Stripe connection: 3 cables [WW, CW, V+]
840208 3000 - 6000 K 360 LEDs 25 W 1950 lm / Stripe 650 lm / Meter EEI: A
12 SMD - 15°C M M
3528 120° Ra>90 2 CH IP20 + 50°C
Cutting option
over to 50 mm / 6 LED
644 LED-STRIPES | 2 Channel
