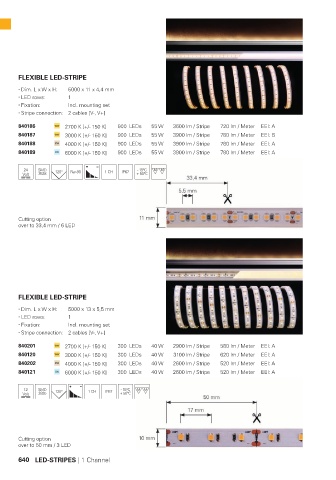

Page 641 - Deko-Light Light Impressions 2019-20
P. 641
FLEXIBLE LED-STRIPE
Dim. L x W x H: 5000 x 11 x 4,4 mm
LED rows: 1
Fixation: Incl. mounting set
Stripe connection: 2 cables [V-, V+]
840186 2700 K [+/- 150 K] 900 LEDs 55 W 3600 lm / Stripe 720 lm / Meter EEI: A
840187 3000 K [+/- 150 K] 900 LEDs 55 W 3900 lm / Stripe 780 lm / Meter EEI: B
840188 4000 K [+/- 150 K] 900 LEDs 55 W 3900 lm / Stripe 780 lm / Meter EEI: A
840189 6000 K [+/- 150 K] 900 LEDs 55 W 3900 lm / Stripe 780 lm / Meter EEI: A
24 SMD - 15°C M M
3528 120° Ra>90 1 CH IP67 + 50°C
Cutting option
over to 33,4 mm / 6 LED
FLEXIBLE LED-STRIPE
Dim. L x W x H: 5000 x 13 x 5,5 mm
LED rows: 1
Fixation: Incl. mounting set
Stripe connection: 2 cables [V-, V+]
840201 2700 K [+/- 150 K] 300 LEDs 40 W 2900 lm / Stripe 580 lm / Meter EEI: A
840120 3000 K [+/- 150 K] 300 LEDs 40 W 3100 lm / Stripe 620 lm / Meter EEI: A
840202 4000 K [+/- 150 K] 300 LEDs 40 W 2600 lm / Stripe 520 lm / Meter EEI: A
840121 6000 K [+/- 150 K] 300 LEDs 40 W 2600 lm / Stripe 520 lm / Meter EEI: A
12 SMD 120° 1 CH IP67 - 15°C M M
2835 + 50°C
Cutting option
over to 50 mm / 3 LED
640 LED-STRIPES | 1 Channel
