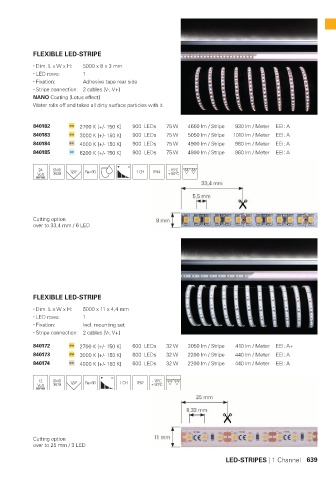

Page 640 - Deko-Light Light Impressions 2019-20
P. 640
FLEXIBLE LED-STRIPE
Dim. L x W x H: 5000 x 8 x 3 mm
LED rows: 1
Fixation: Adhesive tape rear side
Stripe connection: 2 cables [V-, V+]
NANO Coating [Lotus effect]
Water rolls off and takes all dirty surface particles with it.
840182 2700 K [+/- 150 K] 900 LEDs 75 W 4650 lm / Stripe 930 lm / Meter EEI: A
840183 3000 K [+/- 150 K] 900 LEDs 75 W 5050 lm / Stripe 1010 lm / Meter EEI: A
840184 4000 K [+/- 150 K] 900 LEDs 75 W 4900 lm / Stripe 980 lm / Meter EEI: A
840185 6200 K [+/- 150 K] 900 LEDs 75 W 4800 lm / Stripe 960 lm / Meter EEI: A
24 SMD - 15°C M M
3528 120° Ra>90 1 CH IP44 + 50°C
Cutting option
over to 33,4 mm / 6 LED
FLEXIBLE LED-STRIPE
Dim. L x W x H: 5000 x 11 x 4,4 mm
LED rows: 1
Fixation: Incl. mounting set
Stripe connection: 2 cables [V-, V+]
840172 2700 K [+/- 150 K] 600 LEDs 32 W 2050 lm / Stripe 410 lm / Meter EEI: A+
840173 3000 K [+/- 150 K] 600 LEDs 32 W 2200 lm / Stripe 440 lm / Meter EEI: A
840174 4000 K [+/- 150 K] 600 LEDs 32 W 2200 lm / Stripe 440 lm / Meter EEI: A
12 SMD - 15°C M M
3528 120° Ra>90 1 CH IP67 + 50°C
Cutting option
over to 25 mm / 3 LED
LED-STRIPES | 1 Channel 639
