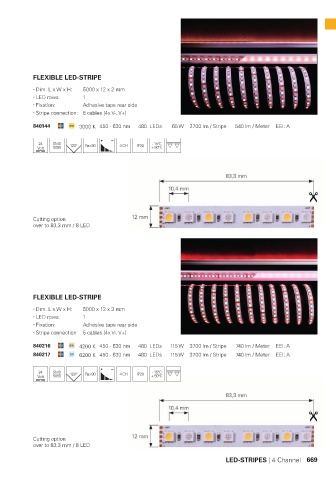

Page 670 - Deko-Light Light Impressions 2019-20
P. 670
FLEXIBLE LED-STRIPE
Dim. L x W x H: 5000 x 12 x 2 mm
LED rows: 1
Fixation: Adhesive tape rear side
Stripe connection: 5 cables [4x V-, V+]
840144 3000 K 450 - 630 nm 480 LEDs 65 W 2700 lm / Stripe 540 lm / Meter EEI: A
24 SMD - 15°C M M
5050 120° Ra>90 4 CH IP20 + 50°C
Cutting option
over to 83,3 mm / 8 LED
FLEXIBLE LED-STRIPE
Dim. L x W x H: 5000 x 12 x 3 mm
LED rows: 1
Fixation: Adhesive tape rear side
Stripe connection: 5 cables [4x V-, V+]
840216 4200 K 450 - 630 nm 480 LEDs 115 W 3700 lm / Stripe 740 lm / Meter EEI: A
840217 6200 K 450 - 630 nm 480 LEDs 115 W 3700 lm / Stripe 740 lm / Meter EEI: A
24 SMD 120° Ra>90 4 CH IP20 - 15°C M M
5050 + 50°C
Cutting option
over to 83,3 mm / 8 LED
LED-STRIPES | 4 Channel 669
