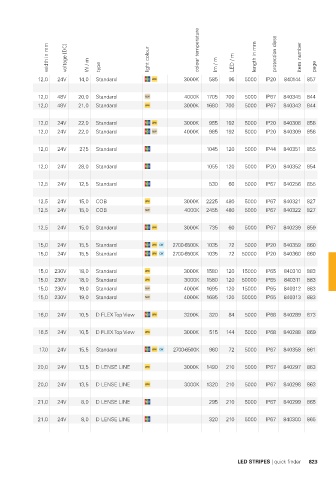

Page 825 - Deko-light Catalogue 2022
P. 825
width in mm voltage [DC] W / m type light colour colour temperature lm / m LED / m length in mm protection class item number page
12,0 24V 14,0 Standard 3000K 585 96 5000 IP20 840144 857
12,0 48V 20,0 Standard 4000K 1705 700 5000 IP67 840345 844
12,0 48V 21,0 Standard 3000K 1680 700 5000 IP67 840343 844
12,0 24V 22,0 Standard 3000K 955 192 5000 IP20 840308 858
12,0 24V 22,0 Standard 4000K 985 192 5000 IP20 840309 858
12,0 24V 27,5 Standard 1045 120 5000 IP44 840351 855
12,0 24V 28,0 Standard 1055 120 5000 IP20 840352 854
12,5 24V 12,5 Standard 530 60 5000 IP67 840256 855
12,5 24V 15,0 COB 3000K 2225 480 5000 IP67 840321 827
12,5 24V 15,0 COB 4000K 2455 480 5000 IP67 840322 827
12,5 24V 15,0 Standard 3000K 735 60 5000 IP67 840239 859
15,0 24V 15,5 Standard 2700-6500K 1035 72 5000 IP20 840359 860
15,0 24V 15,5 Standard 2700-6500K 1035 72 50000 IP20 840360 860
15,0 230V 18,0 Standard 3000K 1580 120 15000 IP65 840310 883
15,0 230V 18,0 Standard 3000K 1580 120 50000 IP65 840311 883
15,0 230V 19,0 Standard 4000K 1695 120 15000 IP65 840312 883
15,0 230V 19,0 Standard 4000K 1695 120 50000 IP65 840313 883
16,0 24V 10,5 D FLEX Top View 3200K 320 84 5000 IP68 840289 873
16,5 24V 10,5 D FLEX Top View 3000K 515 144 5000 IP68 840288 869
17,0 24V 15,5 Standard 2700-6500K 960 72 5000 IP67 840358 861
20,0 24V 13,5 D LENSE LINE 3000K 1490 210 5000 IP67 840297 863
20,0 24V 13,5 D LENSE LINE 3000K 1320 210 5000 IP67 840298 863
21,0 24V 8,0 D LENSE LINE 295 210 5000 IP67 840299 865
21,0 24V 8,0 D LENSE LINE 320 210 5000 IP67 840300 865
LED STRIPES | quick finder 823
