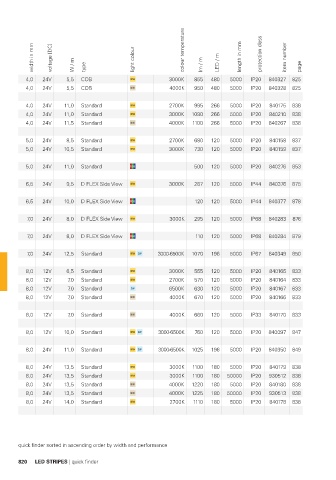

Page 822 - Deko-light Catalogue 2022

width in mm voltage [DC] W / m type light colour colour temperature lm / m LED / m length in mm protection class item number page

4,0 24V 5,5 COB 3000K 855 480 5000 IP20 840327 825
4,0 24V 5,5 COB 4000K 950 480 5000 IP20 840328 825

4,0 24V 11,0 Standard 2700K 995 266 5000 IP20 840175 838
4,0 24V 11,0 Standard 3000K 1090 266 5000 IP20 840210 838
4,0 24V 11,5 Standard 4000K 1100 266 5000 IP20 840267 838

5,0 24V 8,5 Standard 2700K 680 120 5000 IP20 840158 837
5,0 24V 10,5 Standard 3000K 730 120 5000 IP20 840159 837

5,0 24V 11,0 Standard 500 120 5000 IP20 840276 853

6,5 24V 9,5 D FLEX Side View 3000K 287 120 5000 IP44 840376 875

6,5 24V 10,0 D FLEX Side View 120 120 5000 IP44 840377 878

7,0 24V 8,0 D FLEX Side View 3000K 295 120 5000 IP68 840283 876

7,0 24V 8,0 D FLEX Side View 110 120 5000 IP68 840284 879

7,0 24V 12,5 Standard 3000-6500K 1070 196 5000 IP67 840349 850

8,0 12V 6,5 Standard 3000K 555 120 5000 IP20 840165 833
8,0 12V 7,0 Standard 2700K 570 120 5000 IP20 840164 833
8,0 12V 7,0 Standard 6500K 630 120 5000 IP20 840167 833
8,0 12V 7,0 Standard 4000K 670 120 5000 IP20 840166 833

8,0 12V 7,0 Standard 4000K 660 120 5000 IP33 840170 833

8,0 12V 10,0 Standard 3000-6500K 760 120 5000 IP20 840097 847

8,0 24V 11,0 Standard 3000-6500K 1025 196 5000 IP20 840350 849

8,0 24V 13,5 Standard 3000K 1100 180 5000 IP20 840179 838
8,0 24V 13,5 Standard 3000K 1100 180 50000 IP20 930512 838
8,0 24V 13,5 Standard 4000K 1220 180 5000 IP20 840180 838
8,0 24V 13,5 Standard 4000K 1225 180 50000 IP20 930513 838
8,0 24V 14,0 Standard 2700K 1110 180 5000 IP20 840178 838

quick finder sorted in ascending order by width and performance

820 LED STRIPES | quick finder
