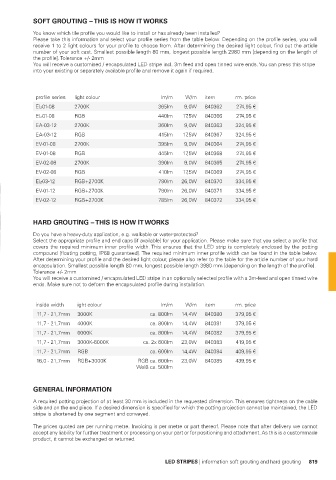

SOFT GROUTING − THIS IS HOW IT WORKS

You know which tile profile you would like to install or has already been installed?
Please take this information and select your profile series from the table below. Depending on the profile series, you will
receive 1 to 2 light colours for your profile to choose from. After determining the desired light colour, find out the article
number of your soft cast. Smallest possible length 80 mm, longest possible length 2980 mm [depending on the length of
the profile]. Tolerance +/- 2mm
You will receive a customised / encapsulated LED stripe incl. 3m feed and open tinned wire ends. You can press this stripe
into your existing or separately available profile and remove it again if required.

profile series light colour lm/m W/m item rm. price
EL-01-08 2700K 365lm 9,0W 840362 274,95 €
EL-01-08 RGB 440lm 17,5W 840366 274,95 €
EA-03-12 2700K 360lm 9,0W 840363 324,95 €
EA-03-12 RGB 415lm 17,5W 840367 324,95 €
EV-01-08 2700K 395lm 9,0W 840364 274,95 €
EV-01-08 RGB 445lm 17,5W 840368 274,95 €
EV-02-08 2700K 390lm 9,0W 840365 274,95 €
EV-02-08 RGB 410lm 17,5W 840369 274,95 €
EL-03-12 RGB+2700K 790lm 26,0W 840370 334,95 €
EV-01-12 RGB+2700K 780lm 26,0W 840371 334,95 €
EV-02-12 RGB+2700K 785lm 26,0W 840372 334,95 €

HARD GROUTING − THIS IS HOW IT WORKS
Do you have a heavy-duty application, e.g. walkable or water-protected?
Select the appropriate profile and end caps [if available] for your application. Please make sure that you select a profile that
covers the required minimum inner profile width. This ensures that the LED strip is completely enclosed by the potting
compound [floating potting, IP68 guaranteed]. The required minimum inner profile width can be found in the table below.
After determining your profile and the desired light colour, please also refer to the table for the article number of your hard
encapsulation. Smallest possible length 80 mm, longest possible length 3980 mm [depending on the length of the profile].
Tolerance +/- 2mm
You will receive a customised / encapsulated LED stripe in an optionally selected profile with a 3m-feed and open tinned wire
ends. Make sure not to deform the encapsulated profile during installation.

inside width ight colour lm/m W/m item rm. price
11,7 - 21,7mm 3000K ca. 800lm 14,4W 840380 379,95 €
11,7 - 21,7mm 4000K ca. 800lm 14,4W 840381 379,95 €
11,7 - 21,7mm 6000K ca. 800lm 14,4W 840382 379,95 €
11,7 - 21,7mm 3000K-6000K ca. 2x 600lm 23,0W 840383 419,95 €
11,7 - 21,7mm RGB ca. 600lm 14,4W 840384 409,95 €
16,0 - 21,7mm RGB+3000K RGB ca. 600lm 23,0W 840385 439,95 €
Weiß ca. 500lm

GENERAL INFORMATION
A required potting projection of at least 30 mm is included in the requested dimension. This ensures tightness on the cable
side and on the end piece. If a desired dimension is specified for which the potting projection cannot be maintained, the LED
stripe is shortened by one segment and conveyed.
The prices quoted are per running metre. Invoicing is per metre or part thereof. Please note that after delivery we cannot
accept any liability for further treatment or processing on your part or for positioning and attachment. As this is a custommade
product, it cannot be exchanged or returned.

LED STRIPES | information soft grouting and hard grouting 819
